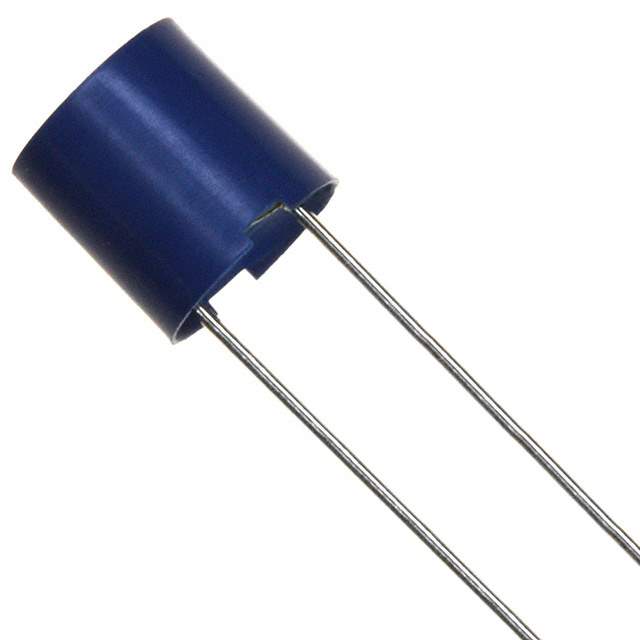

TSL0808RA-4R7M3R5-PF Real Image TSL0808RA-4R7M3R5-PF label picture
Same model may have multiple batches, images only for reference.
TSL0808RA-4R7M3R5-PF Real Image TSL0808RA-4R7M3R5-PF label picture
TSL0808RA-4R7M3R5-PF Real Image TSL0808RA-4R7M3R5-PF label picture
Same model may have multiple batches, images only for reference.

TSL0808RA-4R7M3R5-PF

Part No TSL0808RA-4R7M3R5-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3.5A 21 MOHM TH
Datasheet
TSL0808RA-4R7M3R5-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 4.7μH
Tolerance ±20%
Current Rating 3.5A
Current - Saturation 3.8A
DC Resistance (DCR) 21 mOhm Max
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 27MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.346" (8.80mm)
Win Source Part Number 1114658-TSL0808RA-4R7M3R5-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL0808RA-4R7M3R5-PF CAD Model

Description

The TDK Corporation TSL0808RA-4R7M3R5-PF is a through-hole inductor with a 4.7μH inductance and a tolerance of ±20%.

  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Category: Inductors, Coils, Chokes
  • Current Rating: 3.5A
  • Maximum Height: 0.346" (8.80mm)
  • DC Resistance (DCR): 21 mOhm Max
  • Supply and Demand: balanced
  • Status: Obsolete (EOL)
