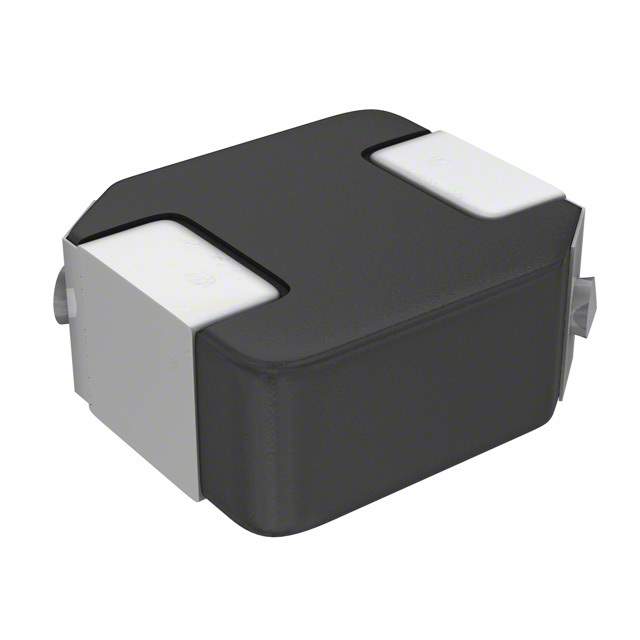

SPM6530T-R25M230 Real Image
Same model may have multiple batches, images only for reference.

SPM6530T-R25M230

Part No SPM6530T-R25M230
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 250NH 23A 2.31 MOHM
Datasheet
SPM6530T-R25M230 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 250nH
Tolerance ±20%
Current Rating 23A
Current - Saturation 28.5A
DC Resistance (DCR) 2.31 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 098133-SPM6530T-R25M230
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SPM6530T-R25M230 CAD Model

Description

The TDK Corporation SPM6530T-R25M230 is a wirewound type inductor with a current rating of 23A and an inductance of 250nH.

  • Current Rating: 23A
  • Inductance: 250nH
  • Tolerance: ±20%
  • Maximum DC Resistance: 2.31 mOhm
  • Height: 0.118" (3.00mm)
  • Mounting: SMD (SMT)
  • Core Material: Metal
  • Current Saturation: 28.5A
  • Frequency Self-Resonant: Not Available
  • Frequency Test: Not Available
  • Category: Inductors, Coils, Chokes
  • Supply and Demand Status: Balanced
  • Win Source Part Number: 098133-SPM6530T-R25M230
