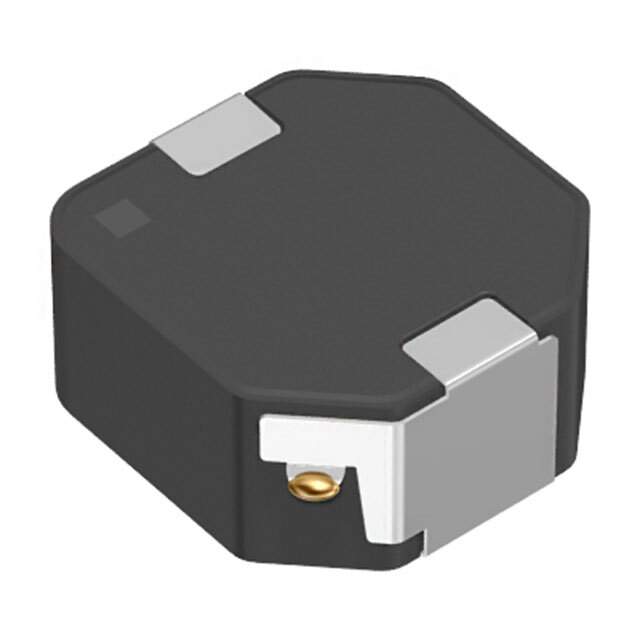

SPM12565VT-1R5M-D Real Image
Same model may have multiple batches, images only for reference.

SPM12565VT-1R5M-D

Part No SPM12565VT-1R5M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 22.3 A
Current - Saturation (Isat) 32.8A
Shielding Shielded
DC Resistance (DCR) 2.8mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.492" W (13.00mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Other Names 445-SPM12565VT-1R5M-DTR,445-SPM12565VT-1R5M-DCT,445-SPM12565VT-1R5M-DDKR
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272528-SPM12565VT-1R5M-D
Ultra Librarian 3D Model Ultra Librarian SPM12565VT-1R5M-D CAD Model

Description

The SPM-VT-D series SMD drum core, wirewound fixed inductor from TDK Corporation has a Win Source Part Number of 1272528-SPM12565VT-1R5M-D.

  • Shielded: Yes
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Maximum Current Rating: 22.3 A
  • Inductance Frequency Test: 100 kHz
  • DC Resistance: 2.8mOhm
  • Height: 0.256" (6.50mm)
  • HTSUS: 8504.50.8000
