Same model may have multiple batches, images only for reference.

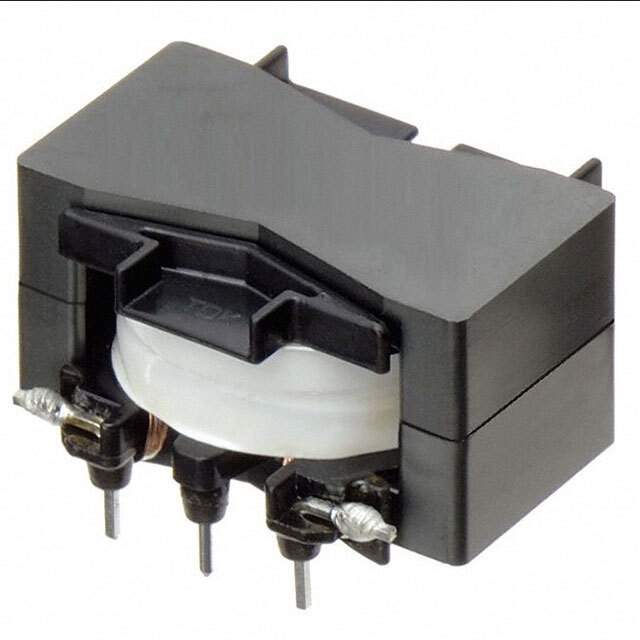

PFC3519QM-451K04E-00 Real Image
Same model may have multiple batches, images only for reference.

PFC3519QM-451K04E-00

Part No PFC3519QM-451K04E-00
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series PFC
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 450 µH
Tolerance ±10%
Current Rating (Amps) 3.7 A
Shielding Unshielded
Temperature Range - Operating -30°C ~ 120°C
Inductance Frequency - Test 50 kHz
Features Choke Coils for PFC (Pin Terminal Type)
Mounting Type Through Hole
Package / Case Radial, Horizontal, 8 Leads
Dimension 1.457" L x 1.181" W (37.00mm x 30.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Other Names 445-16041
Standard Package 140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272711-PFC3519QM-451K04E-00
Ultra Librarian 3D Model Ultra Librarian PFC3519QM-451K04E-00 CAD Model

Description

The PFC3519QM-451K04E-00 inductor is a wirewound drum core choke coil with pin terminal type.

  • Shielding: Unshielded
  • Inductance: 450 µH
  • Height: 0.827 inches (21.00mm)
  • Material: Ferrite
  • Tolerance: ±10%
  • Mounting Type: Through-hole
  • Package/Case: Radial, horizontal, 8 leads
  • Operating Temperature Range: -30°C to 120°C
  • Current Rating: 3.7 A
  • Saturation Current: -
