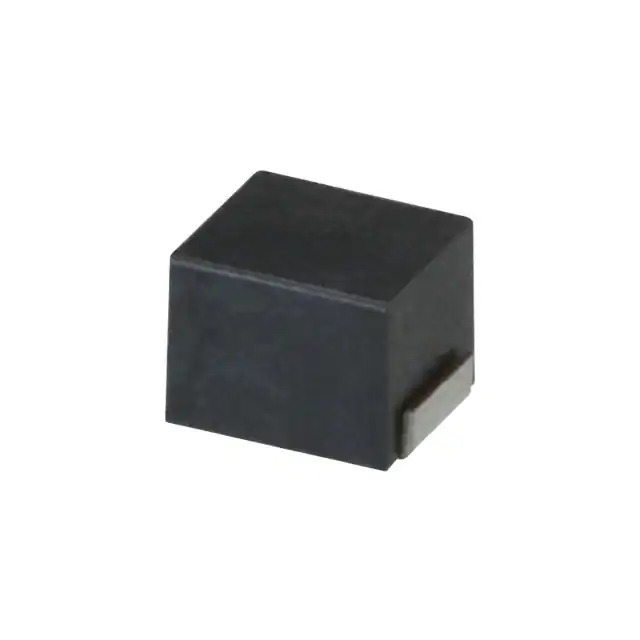

Same model may have multiple batches, images only for reference.

NLV25T-390J-EF

Name: NLV25T-390J-EF
Brand: TDK Corporation
SKU: 1370029
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NLV25T-390J-EF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 39UH 90MA 9.5 OHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	NLV-EF
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	39 µH
Tolerance	±5%
Current Rating (Amps)	90 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	9.5Ohm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	18MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2.52 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.075" (1.90mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370029-NLV25T-390J-EF
Ultra Librarian 3D Model	Ultra Librarian NLV25T-390J-EF CAD Model

Alternative Products

Description

The NLV-EF series from TDK Corporation offers a range of fixed inductors designed for various electronic applications.

Product: Fixed Inductor
Manufacturer: TDK Corporation
Inductance: 39 µH
Tolerance: ±5%
Type: Drum Core, Wirewound
Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height: 0.075" (1.90mm)
Current Rating: 90 mA
DC Resistance (DCR): 9.5Ohm
Mounting Type: Surface Mount
Packaging: Tape & Reel
Status: Active
