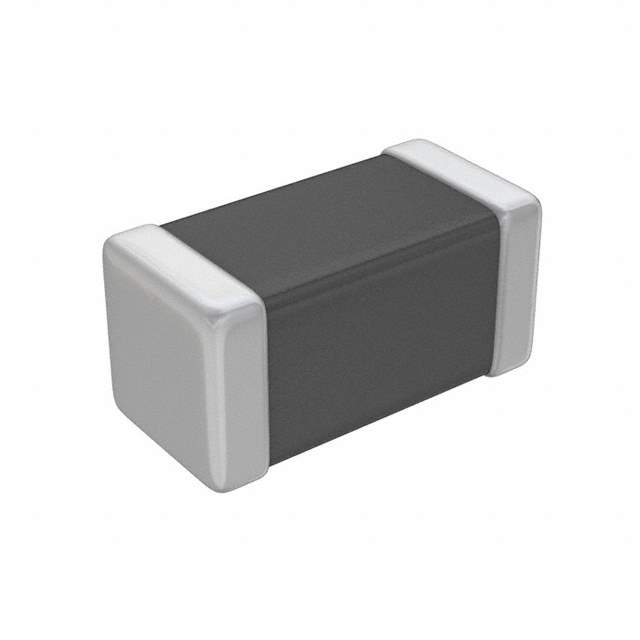

MMZ0603S102HT000 Real Image
Same model may have multiple batches, images only for reference.

MMZ0603S102HT000

Part No MMZ0603S102HT000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1 KOHM 0201 1LN
Datasheet
MMZ0603S102HT000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1.25 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.013" (0.33mm)
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Win Source Part Number 098051-MMZ0603S102HT000
Ultra Librarian 3D Model Ultra Librarian MMZ0603S102HT000 CAD Model

Description

The TDK Corporation MMZ0603S102HT000 is a signal line filter.

  • Impedance: 1 kOhm @ 100MHz
  • Maximum DC Resistance: 1.25 Ohm
  • Maximum Current Rating: 200mA
  • Temperature Range: -55°C to 125°C
  • Mounting Type: SMD (SMT)
  • Packaging: Reel
  • Height: 0.013" (0.33mm)
  • Category: Filters
