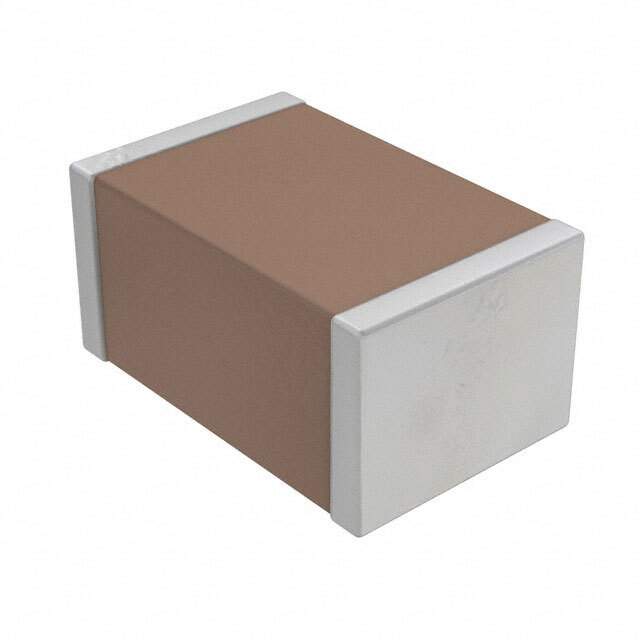

The CGA4J3X7R1H105KT0Y0N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for general-purpose applications requiring stable performance and high reliability. It utilizes an X7R dielectric, known for its consistent performance across a broad temperature range. The CGA series is recognized for its compact size and suitability for a variety of electronic circuits.

Applications

• Bypass Capacitors: Used to suppress noise and stabilize voltage in both analog and digital circuits.
• Decoupling Capacitors: Provides clean power by decoupling power rails in integrated circuits and microcontrollers.
• Smoothing Capacitors: Reduces voltage ripple in power supplies, ensuring stable operation.
• Filtering Applications: Used in filter circuits to remove unwanted frequency components.
• General Circuit Stabilization: Enhances the overall stability and reliability of electronic devices.

Features

• X7R Dielectric: Offers stable capacitance over a wide temperature range.
• Multilayer Ceramic Capacitor (MLCC): Provides high capacitance in a compact form factor.
• Small Form Factor: Enables high-density mounting on PCBs.
• High Reliability: Ensures consistent performance and long operational life.
• RoHS Compliance: Adheres to environmental regulations for hazardous materials.

Benefits

• Stable Performance: The X7R dielectric minimizes capacitance variations with temperature, ensuring reliable circuit operation under varying conditions.
• Space Efficiency: The small size allows for efficient use of PCB space, enabling compact designs.
• Noise Reduction: Effectively reduces noise and voltage fluctuations, enhancing circuit performance.
• Enhanced Stability: Contributes to the overall stability and reliability of electronic circuits.
• Versatile Application: Suitable for a wide range of electronic applications due to its stable properties and robust design.

Specifications

The CGA4J3X7R1H105KT0Y0N capacitor features a capacitance of 1 µF (105). It is rated for a voltage of 50 VDC. Its operating temperature ranges from -55°C to +125°C. The capacitance tolerance is ±10%. The case size is commonly 0805. The termination is typically nickel barrier with tin plating for superior solderability and long-term reliability.
