Same model may have multiple batches, images only for reference.

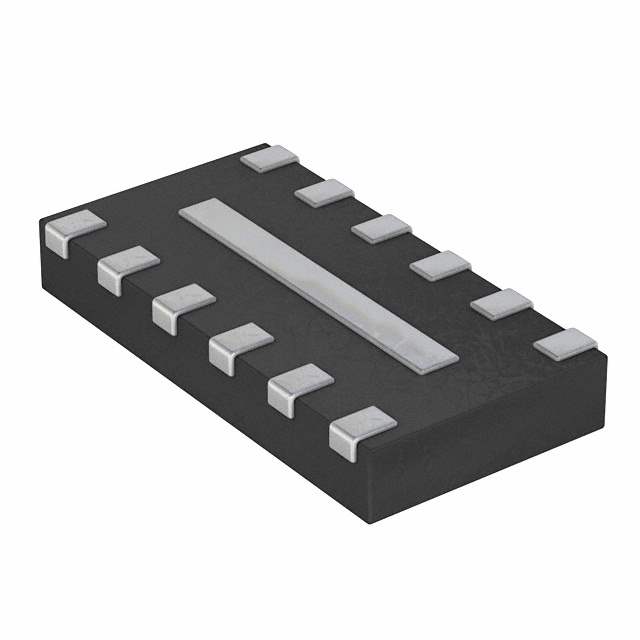

ECLAMP2386P.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2386P.TCT

Part No ECLAMP2386P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 200 OHM/12PF SMD
Datasheet
ECLAMP2386P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Attenuation Value 30dB @ 800MHz to 2.7GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.118" L x 0.063" W (3.00mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 080886-ECLAMP2386P.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECLAMP2386P.TCT CAD Model

Description

Product Description

The ECLAMP2386P.TCT offers superior transient voltage suppression capabilities, safeguarding electronic circuits from voltage spikes and electromagnetic interference. Its low-profile design makes it compatible with modern circuit boards requiring minimal additional height.

Applications & Projects

  • Digital cameras
  • Portable gaming consoles
  • Peripheral interfaces
  • Networking devices

Features & Benefits

  • Low clamping voltage
  • High surge capability
  • Compact and planar design
  • RoHS compliant materials

Additional Details

Designed with advanced semiconductor technology, the ECLAMP2386P.TCT ensures optimal protection performance while maintaining high speed signal integrity, protecting delicate components without compromising on data speed.
