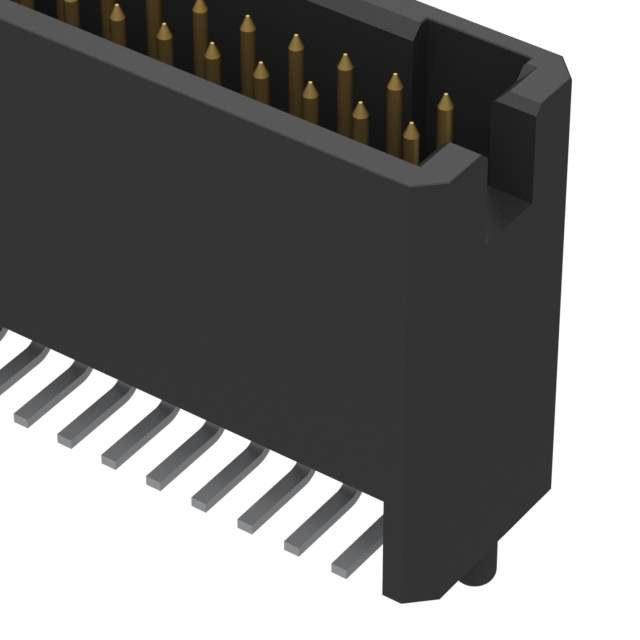

Same model may have multiple batches, images only for reference.

TFC-110-32-F-D-A

Get a Quote

Part No	TFC-110-32-F-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet	TFC-110-32-F-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFC
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.139" (3.53mm)
Insulation Height	0.441" (11.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.1A per Contact
Voltage Rating	275VAC
Base Product Number	TFC-110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	35
Win Source Part Number	1209714-TFC-110-32-F-D-A
Ultra Librarian 3D Model	Ultra Librarian TFC-110-32-F-D-A CAD Model

Alternative Products

Description

The Tiger Eye™ TFC series header connector is a high-quality connector designed for use in a wide range of electronic applications.

Contact Gender: male pin
Number of Positions: 20
Number of Rows: 2
Voltage Rating: 275VAC
Current Rating: 3.1A per contact
Finish-Mating: gold with a thickness of 3.00μin (0.076μm)
Contact Finish-Post: tin
Shrouded: 4 walls
Pitch-Mating: 0.050" (1.27mm)
Application: board to board or cable
Insulation Color: black
Series: Tiger Eye™ TFC
