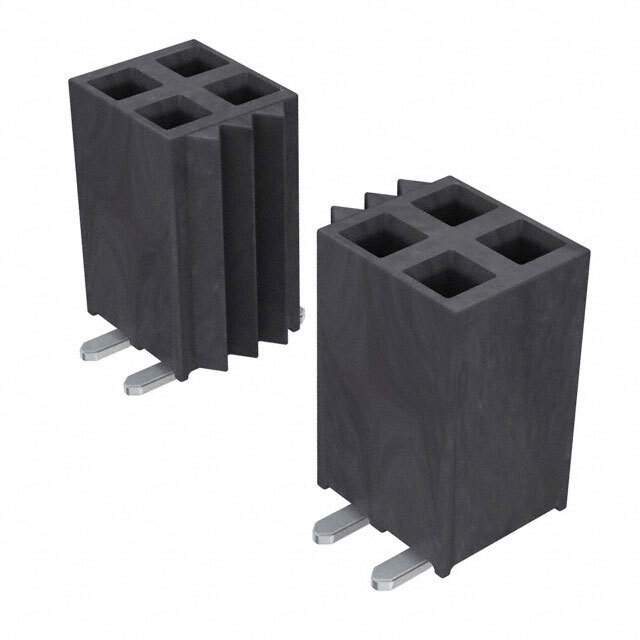

SSW-115-22-L-D-VS

Name: SSW-115-22-L-D-VS
Brand: Samtec Inc.
SKU: 1288066
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-115-22-L-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-115-22-L-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-115
Standard Package	14
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288066-SSW-115-22-L-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-115-22-L-D-VS CAD Model

Description

The SSW series rectangular connector is a receptacle type connector with forked contact type and solder termination.

Connector Type: Receptacle
Contact Type: Forked
Termination: Solder
Application: Board-to-Board or Cable
Rows: 2
Positions: 30
Mated Stacking Height: Not Specified
Voltage Rating: Not Specified
Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Finish Mating: Gold (10.0µin (0.25µm))
Contact Finish Post: Tin
Temperature Range: -55°C to 125°C
Current Rating: 4.7A per contact
REACH: Unaffected
HTSUS Code: 8536.69.4040
Manufacturer: Samtec Inc.
