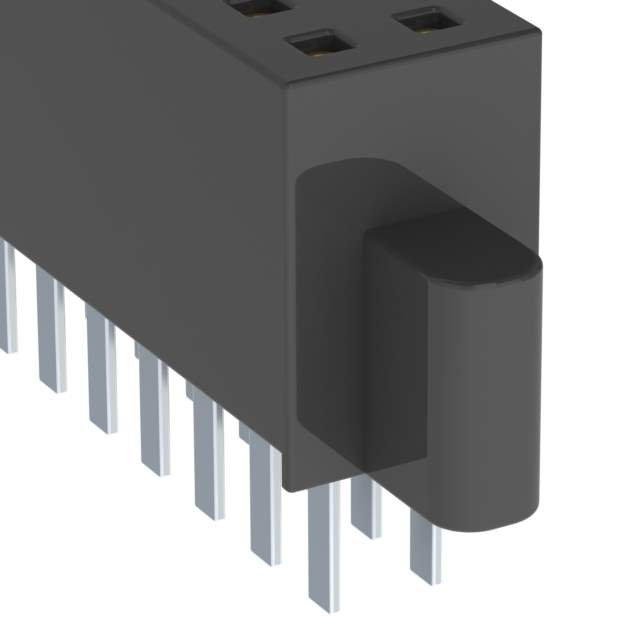

Name: SFM-130-03-F-D-N
Brand: Samtec Inc.
SKU: 1287712
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	60
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.075" (1.91mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-130
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287712-SFM-130-03-F-D-N
Ultra Librarian 3D Model	Ultra Librarian SFM-130-03-F-D-N CAD Model

Description

The Tiger Eye™ SFM series female socket connector is a reliable and efficient solution for rectangular connectors.

Positions: 60
Rows: Two
Connector Type: Receptacle
Applications: Board-to-Board or Cable
Fastening Type: Push-Pull
Termination: Solder
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Contact Material: Beryllium Copper
Contact Finish: Gold
Mated Stacking Heights: 6.02mm to 11.63mm
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.180" (4.57mm)
Color: Black
Material Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
