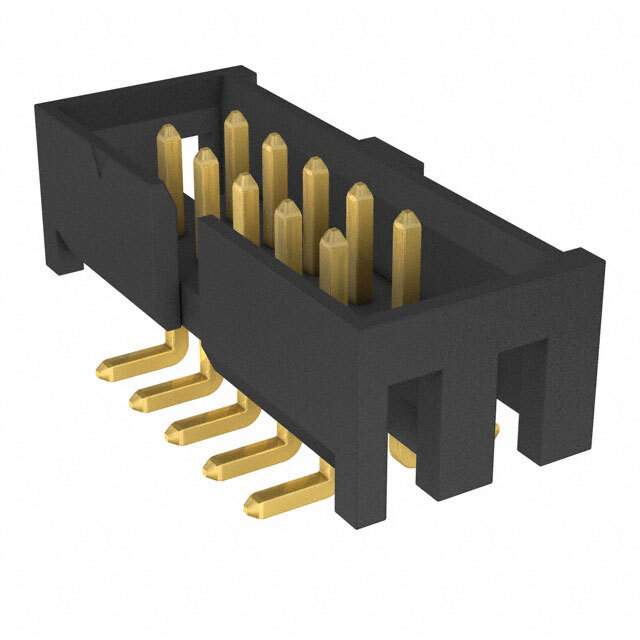

STMM-105-02-G-D-SM-K-TR Real Image
Same model may have multiple batches, images only for reference.

STMM-105-02-G-D-SM-K-TR

Part No STMM-105-02-G-D-SM-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-105-02-G-D-SM-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number STMM-105
Other Names STMM-105-02-G-D-SM-K-FR,SAM14647CT,STMM-105-02-G-D-SM-K-TR,SAM14647TR,SAM14647DKR
Standard Package 475
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293211-STMM-105-02-G-D-SM-K-TR
Ultra Librarian 3D Model Ultra Librarian STMM-105-02-G-D-SM-K-TR CAD Model

Description

The Flex Stack STMM 10-position male pin header connector is designed for use in rectangular connectors, specifically headers.

  • Keying: Keying Slot
  • Pick-and-Place: Yes
  • Connector Type: Header
  • Contact Type: Male Pins
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tape and Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Not Specified
  • Mated Stacking Heights: Not Specified
  • Ingress Protection: Not Specified
  • Material Flammability Rating: Not Specified
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Style: Board to Cable/Wire
  • Pitch (Mating): 0.079 inches (2.00mm)
  • Contact Finish (Mating): Gold with a thickness of 20.0µin (0.51µm)
  • Contact Finish (Post): Gold with a thickness of 3.00µin (0.076µm)
  • Insulation Color: Black
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing (Mating): 0.079 inches (2.00mm)
  • Contact Length (Mating): 0.120 inches (3.05mm)
  • Overall Contact Length: Not Specified
  • Contact Length (Post): Not Specified
  • Insulation Height: 0.190 inches (4.83mm)
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
