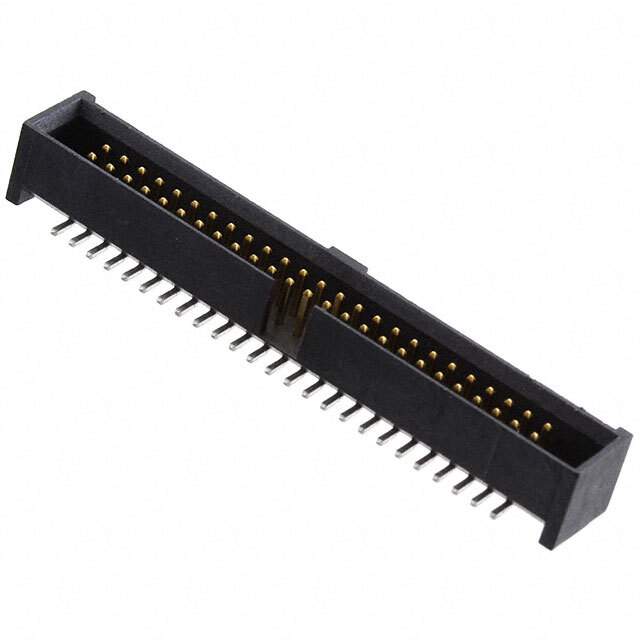

SHF-125-01-L-D-SM-LC-K-TR

Name: SHF-125-01-L-D-SM-LC-K-TR
Brand: Samtec Inc.
SKU: 1293163
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SHF-125-01-L-D-SM-LC-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SHF-125-01-L-D-SM-LC-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock, Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-125
Other Names	612-SHF-125-01-L-D-SM-LC-K-TR,612-SHF-125-01-L-D-SM-LC-K-TRCT,SHF-125-01-L-D-SM-LC-K-TR
Standard Package	350
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293163-SHF-125-01-L-D-SM-LC-K-TR
Ultra Librarian 3D Model	Ultra Librarian SHF-125-01-L-D-SM-LC-K-TR CAD Model

Alternative Products

Description

The SHF-125-01-L-D-SM-LC-K-TR is a 50-position male pin header connector from the SHF series of connectors.

Positions: 50
Contact Type: Male Pin
Connection Type: Board-to-Cable/Wire
Termination Type: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.210 inches
Temperature Range: -55°C to 125°C
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 10.0µin (0.25µm)
Contact Finish-Post: Tin
Contact Shape: Square
Contact Length-Mating: 0.120 inches (3.05mm)
Voltage Rating: -
