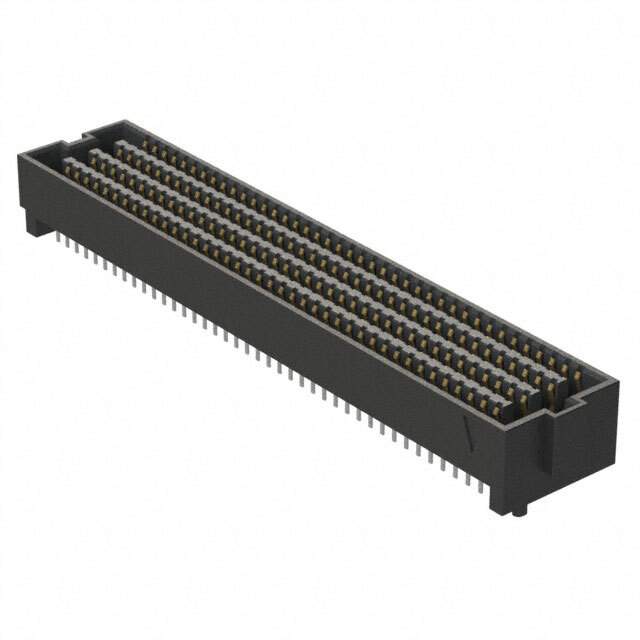

SEAF-40-05.0-L-08-2-A-K-TR

Name: SEAF-40-05.0-L-08-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293905
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-40-05.0-L-08-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-05.0-L-08-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	320
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-40
Other Names	SAM14357DKR,SEAF-40-05.0-L-08-2-A-K-TR,SAM14357CT,SAM14357TR
Standard Package	225
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293905-SEAF-40-05.0-L-08-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-05.0-L-08-2-A-K-TR CAD Model

Alternative Products

Description

The SEAF series high-density array female connector from Samtec Inc. is a surface-mount connector with a pitch of 0.050" (1.27mm) and eight rows.

Height above board: 0.199" (5.05mm)
Number of positions: 320
Contact finish: Gold
Contact finish thickness: 10.0μin (0.25μm)
Package: Tape and reel
Standard package: 225
Mated stacking heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
Features: Board guide and pick-and-place
