Same model may have multiple batches, images only for reference.

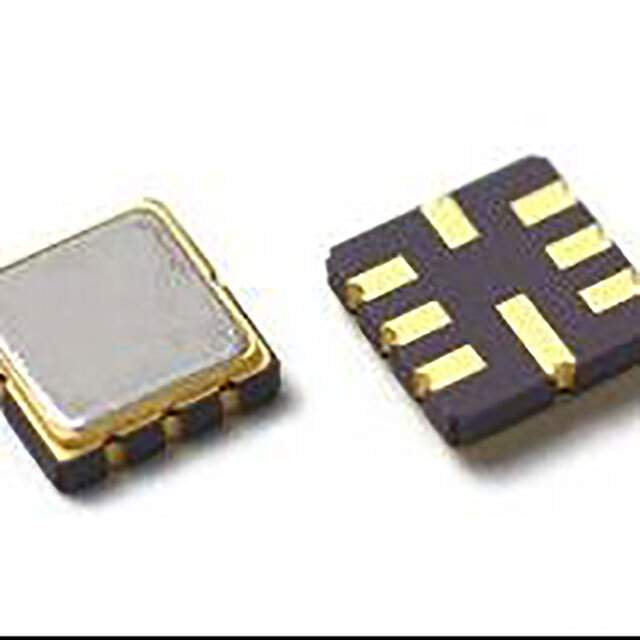

SF2424D Real Image
Same model may have multiple batches, images only for reference.

SF2424D

Part No SF2424D
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2424D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 505MHz
Insertion Loss 2.8dB
Ratings AEC-Q200
Applications General Purpose
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Height (Max) 0.055" (1.40mm)
Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Base Product Number SF2424
Other Names 2410-SF2424DTR2,2410-SF2424D,2410-SF2424DTR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275810-SF2424D
Ultra Librarian 3D Model Ultra Librarian SF2424D CAD Model

Description

The SF2424D is a SAW filter that comes in a package with tape and reel.

  • Manufacturer: RFMi
  • Category: Filters, specifically SAW Filters
  • Filter Type: General-purpose
  • Center Frequency: 505MHz
  • Insertion Loss: 2.8dB
  • Height: 0.055" (1.40mm)
  • Mounting: SMD (SMT) technology
  • Dimension: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • AEC-Q200: Yes
  • Standard Package: 3,000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0060
