Same model may have multiple batches, images only for reference.

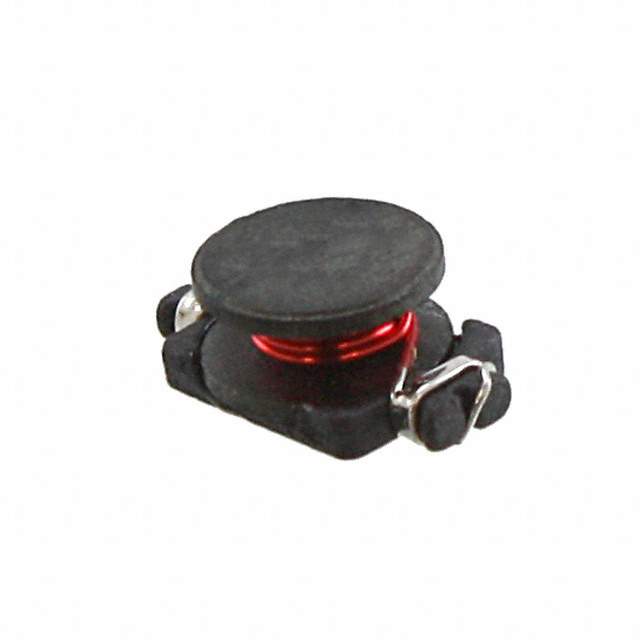

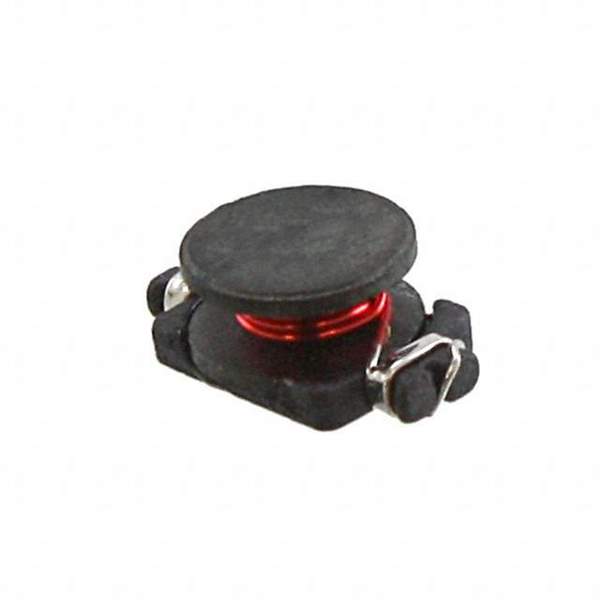

P0770.222NLT Real Image
Same model may have multiple batches, images only for reference.

P0770.222NLT

Part No P0770.222NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.3A 70 MOHM SMD
Datasheet
P0770.222NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 2.2μH
Tolerance ±20%
Current Rating 2.3A
Current - Saturation 2.3A
DC Resistance (DCR) 70 mOhm Max
Temperature Range - Operating -40°C to 130°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.115" (2.92mm)
Win Source Part Number 1085282-P0770.222NLT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian P0770.222NLT CAD Model

Description

The Pulse Electronics Corporation wirewound inductor is a high-quality inductor designed for use in electronic circuits.

  • Popularity: Medium
  • Application: Used in a variety of applications
  • Manufacturer: Pulse Electronics Corporation
  • Environment: Active
  • Current Rating: 2.3A
  • Inductance: 2.2μH
  • Height: 0.115 inches
  • Mounting Type: Surface Mount Technology
  • Tolerance: ±20%
  • DC Resistance: 70 mOhm max
  • Temperature Range: -40°C to 130°C
