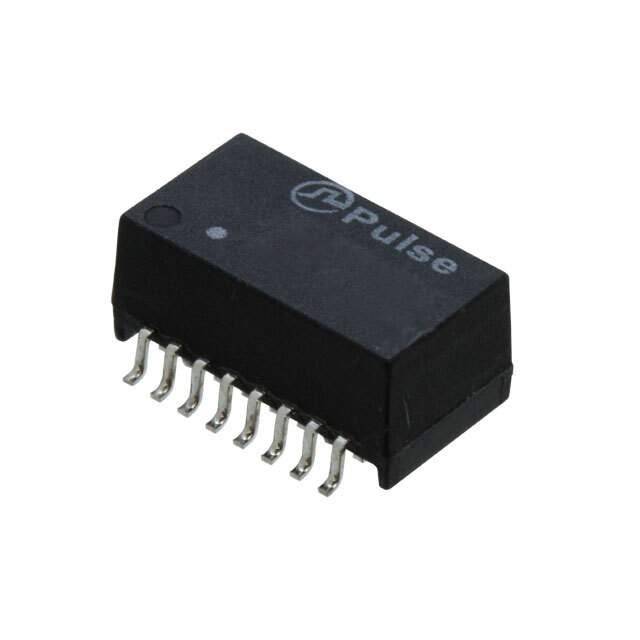

H1197NLT Real Image
Same model may have multiple batches, images only for reference.

H1197NLT

Part No H1197NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MAGNT MOD 1PORT POE 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 17 Weeks
Manufacturer Pulse
Package Reel - TR
Operating Temperature Range 0°C ~ 70°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number H1197NLT-ND, 553-1922-6, 553-1922-2, 553-1922-1
Quantity per package 600
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873112-H1197NLT
Ultra Librarian 3D Model Ultra Librarian H1197NLT CAD Model

Description

The Pulse 873112-H1197NLT is a surface mount pulse transformer that has an operating temperature range of 0°C ~ 70°C.

  • Operating Temperature: 0°C ~ 70°C
  • Packaging: Reel-TR
  • Product Category: Transformers
  • ECCN: EAR99
  • Popularity: Medium
  • Estimated Production Lead Time: 17 Weeks
  • HTSUS: 8504.31.2000
  • Standard Package: 600
  • MSL: 1 (Unlimited)
