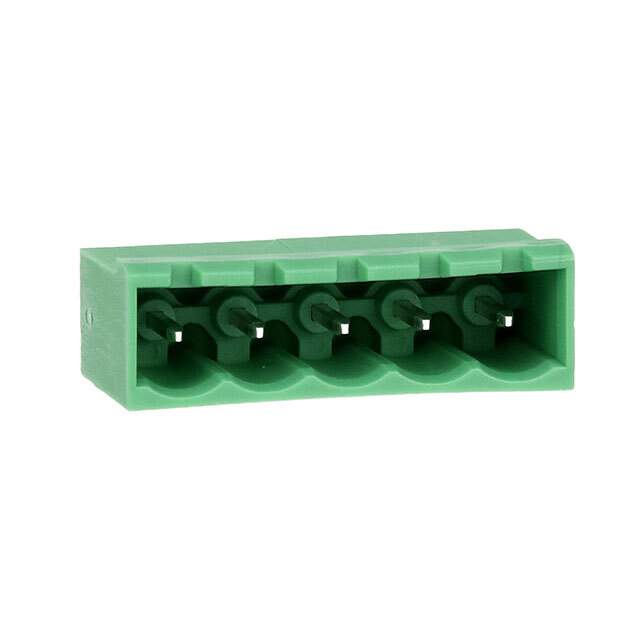

Same model may have multiple batches, images only for reference.

1755545

Name: 1755545
Brand: Phoenix Contact
SKU: 1332182
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1755545
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 5POS VERT 5MM / 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Positions Per Level	5
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	400 V
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.154" (3.90mm)
Insulation Height	0.472" (12.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	MSTBVA 2.5/5-G,277-1143,MSTBVA2,5/5-G
Standard Package	250
Win Source Part Number	1332182-1755545
Ultra Librarian 3D Model	Ultra Librarian 1755545 CAD Model

Description

The Phoenix Contact 1332182-1755545 is a header connector with male pins and shrouded 4 sides.

Positions: 5
Positions per Level: 5
Level: 1
Pitch: 0.197 inches (5.00mm)
Header Orientation: Vertical
Termination Style: Solder
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) and nylon
Material Flammability Rating: UL94 V-0
Rated Current (IEC): 12A
Rated Voltage (IEC): 400V
Rated Current (UL): 12A
Rated Voltage (UL): 300V
RoHS Compliant: Yes
Packaging: Bulk
Standard Package: 250 pieces
