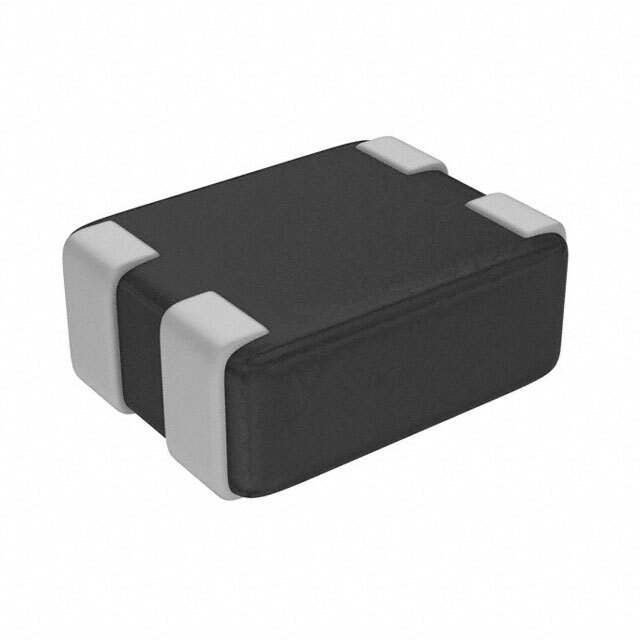

EXC-24CG360U

Part No EXC-24CG360U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 130MA 2LN 36 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 36 Ohm @ 100MHz
Current Rating (Max) 130mA
DC Resistance (DCR) (Max) 1.7 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0504 (1210 Metric), 4 Lead
Win Source Part Number 110482-EXC-24CG360U
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian EXC-24CG360U CAD Model

Description

Engineered for superior resilience and versatile functionalities, the EXC-24CG360U is the go-to component for those needing advanced flexibility and strength in their electronic designs.

Applications

  • Robotics
  • Medical Devices
  • Energy Management Systems
  • Audio and Video Equipment

Features and Benefits

  • Maximized Durability: Withstands extensive usage without compromising performance.
  • Multifunctional Use: Suitable for a wide variety of devices and systems.
  • Reliable Performance: Ensures consistent electrical modulation.
  • Temperature Resistance: Operates effectively even in extreme conditions.

Additional Details

The diversity of the EXC-24CG360U allows for seamless adoption into expansive technological environments, transforming them into reliable, efficient, and sustainable systems.
