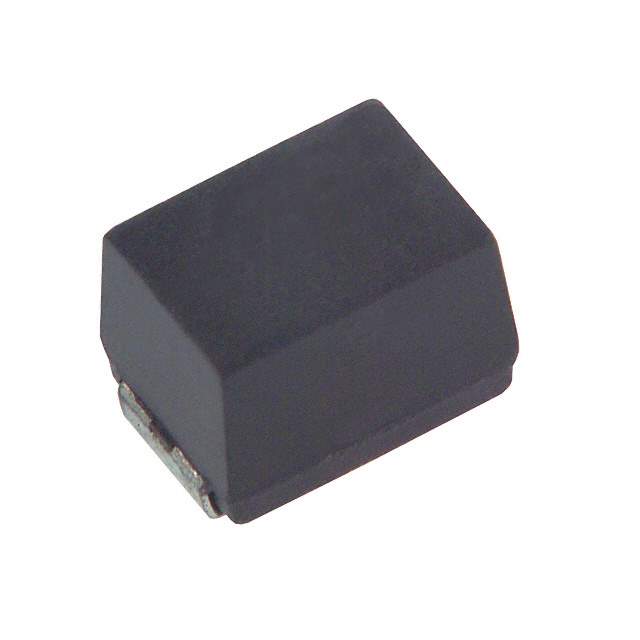

The ELJPB330KF is a fixed inductor manufactured by Panasonic. This inductor is designed to provide inductance for various electronic circuit applications such as filtering, energy storage, and impedance matching.

Applications

• DC-DC converters
• Power supplies
• Noise filters
• RF circuits
• Signal processing circuits

Features

• Surface mount device (SMD) for automated assembly
• Compact size for space-constrained PCBs
• High reliability
• Shielded construction for reduced EMI
• Lead-free construction

Benefits

• Enables miniaturization in electronic designs.
• Minimizes electromagnetic interference.
• Provides stable and reliable performance.
• Complies with environmental regulations.

Detailed Specifications

The ELJPB330KF has an inductance of 33µH (microhenries) with a tolerance of ±10%. The rated current is approximately 0.24A. The DC resistance (DCR) is typically 2.4 ohms, minimizing power loss. The self-resonant frequency (SRF) is typically 7 MHz. The operating temperature range is -40°C to +85°C. The package size is a 1210. The shielded construction is beneficial for applications needing reduced electromagnetic interference. This part is RoHS compliant.
