Same model may have multiple batches, images only for reference.

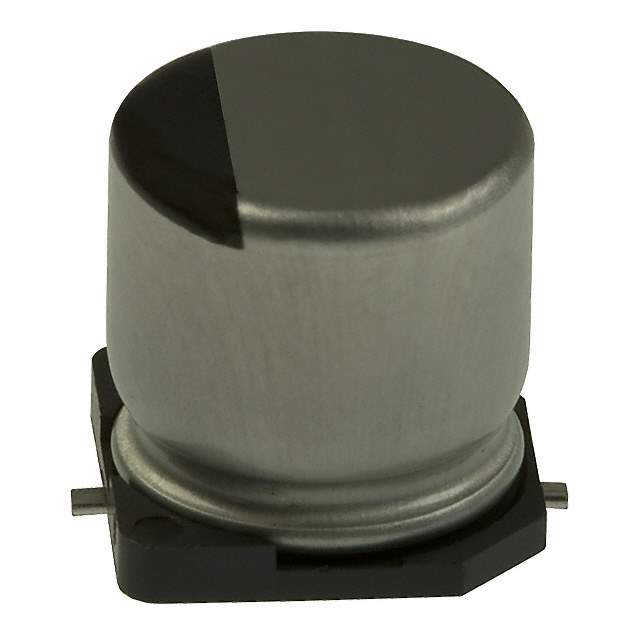

EEE-HA1E100R Real Image
Same model may have multiple batches, images only for reference.

EEE-HA1E100R

Part No EEE-HA1E100R
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 25V SMD / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 28 mA @ 120 Hz
Ripple Current @ High Frequency 47.6 mA @ 10 kHz
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4193CT,PCE4193DKR,EEEHA1E100R,PCE4193TR
Standard Package 1,000
Win Source Part Number 1331163-EEE-HA1E100R
Ultra Librarian 3D Model Ultra Librarian EEE-HA1E100R CAD Model

Description

The Panasonic Electronic Components EEE-HA1E100R is an aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 10 µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Mounting: Surface Mountable
  • Size/Dimension: 0.197" Dia (5.00mm)
  • Height: 0.213" (5.40mm)
  • Ripple Current: 28mA @ 120Hz, 47.6mA @ 10kHz
  • Case/Package: Radial, Can - SMD
  • Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Operating Temperature: -40°C to 105°C
  • AEC-Q200 Rated: Yes
  • RoHS Compliant: Yes
