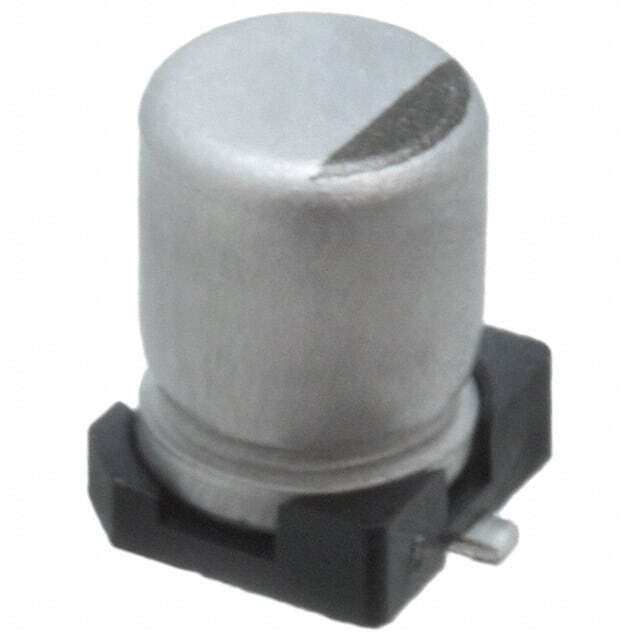

EEE-FT1H220AR Panasonic
Same model may have multiple batches, images only for reference.

EEE-FT1H220AR

Part No EEE-FT1H220AR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FT
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 880mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 107.3 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FT
Other Names PCE5022CT,PCE5022DKR,EEEFT1H220AR,PCE5022TR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307316-EEE-FT1H220AR
Ultra Librarian 3D Model Ultra Librarian EEE-FT1H220AR CAD Model

Description

The Panasonic Electronic Components 1307316-EEE-FT1H220AR is an aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 50 V.

  • ESR: 880mOhm @ 100kHz
  • Ripple Current (Low Frequency): 107.3 mA @ 120 Hz
  • Ripple Current (High Frequency): 165 mA @ 100 kHz
  • Series: FT
  • Package: Radial, Can - SMD
  • Automotive Application: Yes
  • Lifetime: 2000 hours @ 105°C
  • AEC-Q200 Rated: Yes
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Height: 0.240" (6.10mm)
  • Polar: Yes
  • Package: Tape & Reel
