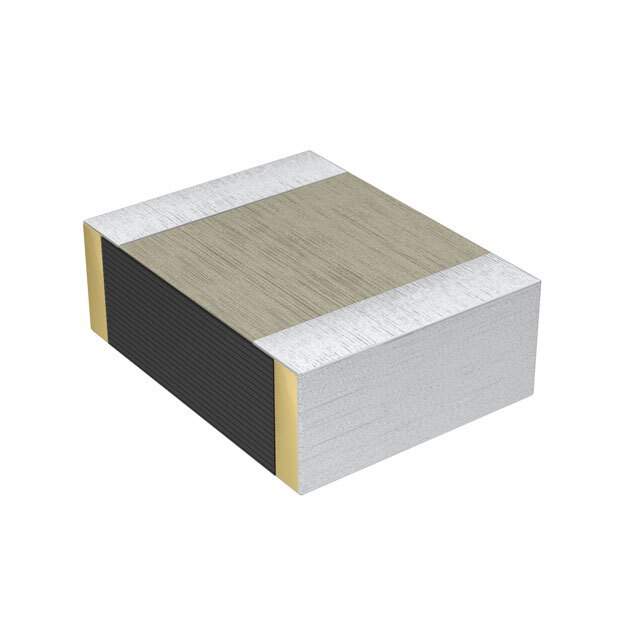

ECH-U1H124JX9 Real Image1 ECH-U1H124JX9 Real Image2
Same model may have multiple batches, images only for reference.
ECH-U1H124JX9 Real Image1 ECH-U1H124JX9 Real Image2
ECH-U1H124JX9 Real Image1 ECH-U1H124JX9 Real Image2
Same model may have multiple batches, images only for reference.

ECH-U1H124JX9

Part No ECH-U1H124JX9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.12UF 5% 50VDC 2416 / 0.12 µF Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 2416 (6041 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic
Series ECH-U(X)
Package Tape & Reel
Capacitance 0.12 µF
Tolerance ±5%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2416 (6041 Metric)
Size / Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.083" (2.10mm)
Termination Solder Pads
Lead Spacing -
Applications General Purpose
Ratings -
Features -
Base Product Number ECH-U1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Standard Package 3,000 pcs
Win Source Part Number 1381982-ECH-U1H124JX9
Ultra Librarian 3D Model Ultra Librarian ECH-U1H124JX9 CAD Model

Description

The ECH-U1H124JX9 is a film capacitor from Panasonic.

  • Series: ECH-U(X)
  • Capacitance: 0.12 µF
  • Tolerance: ±5%
  • Size: 0.236" L x 0.161" W (6.00mm x 4.10mm)
  • Height: 0.083" (2.10mm)
  • Application: General Purpose
  • Voltage Rating: 30V AC / 50V DC
  • Dielectric Material: Polyphenylene Sulfide (PPS)
  • Construction: Metallized Stacked
  • Mounting Type: Surface Mount
  • Package / Case: 2416 (6041 Metric)
