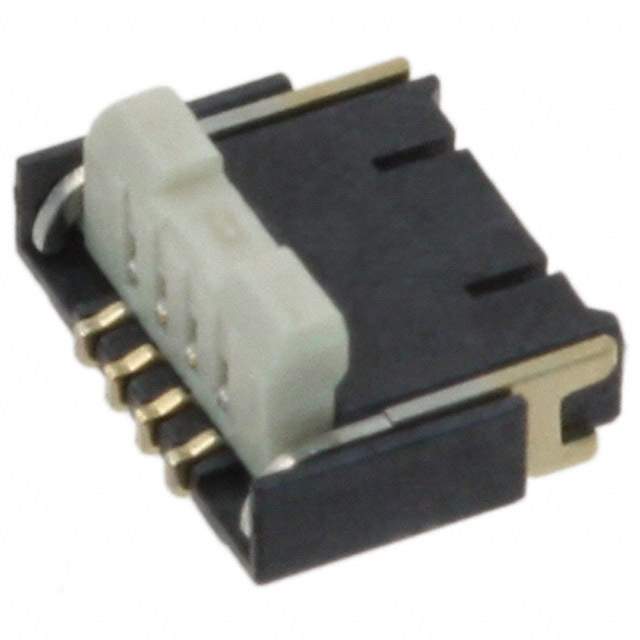

AYF530265

Name: AYF530265
Brand: Panasonic
SKU: 1381508
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AYF530265
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 2POS 0.5MM R/A / 2 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Panasonic
Series	Y5BW
Package	Tape & Reel
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	2
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Notched
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Features	-
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A per Contact
Contact Finish Thickness	Flash
Housing Color	-
Actuator Color	-
Mating Cycles	20
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Standard Package	5,000 pcs
Win Source Part Number	1381508-AYF530265
Ultra Librarian 3D Model	Ultra Librarian AYF530265 CAD Model

Alternative Products

Description

The 1198644 is a Y5BW FFC, FPC connector assembly from Panasonic.

Positions: 2
Pitch: 0.020" (0.50mm)
Termination: Solder
Contact Finish: Gold
Material: Copper Alloy
Voltage Rating: 50V
Height Above Board: 0.039" (1.00mm)
Cable Type: FPC Flat Flex
Contact Side: Top and Bottom
Features: Flip Lock, Backlock
Material Body: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Temperature Range: -55°C to 85°C
Packaging: Tape & Reel
Standard Package Quantity: 5,000 pcs
