Same model may have multiple batches, images only for reference.

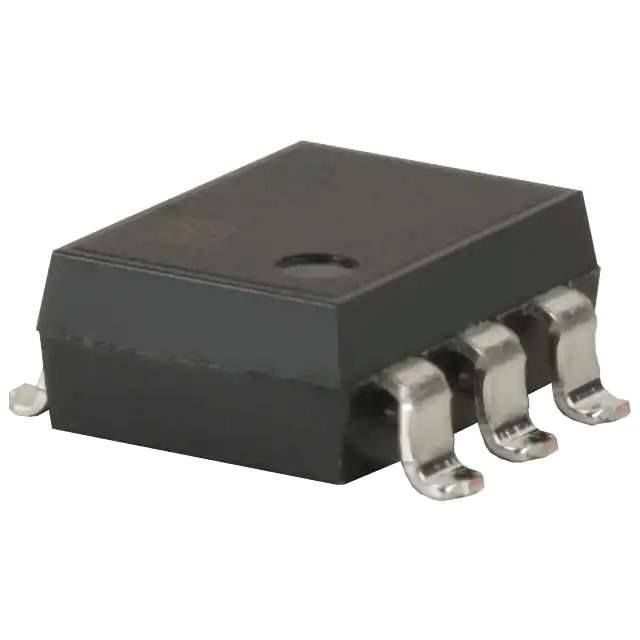

AQV214HAX Real Image
Same model may have multiple batches, images only for reference.

AQV214HAX

Part No AQV214HAX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 120MA 0-400V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 50 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV214
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564344-AQV214HAX
Ultra Librarian 3D Model Ultra Librarian AQV214HAX CAD Model

Description

The AQV214HAX is a solid-state relay from Panasonic's PhotoMOS AQV series.

  • Voltage Input: 1.14VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 50 Ohms
  • Load Current: 120 mA
  • Voltage Load Range: 0V to 400V
  • Mounting Type: surface-mount
  • Termination Style: gull-wing
  • Package: tape and reel
  • Standard Package: 1,000 pieces
  • Manufacturer: Panasonic
  • Base Product Number: AQV214
