ON Semiconductor NB7L14MN1TWG Overview

The NB7L14MN1TWG from ON Semiconductor is a high-performance, low-power differential 2:1 multiplexer and 1:2 demultiplexer with a CML (Current Mode Logic) output driver. This versatile device is designed to meet the stringent requirements of high-speed data transmission systems, offering an optimal solution for applications such as data routing, clock and data multiplexing/demultiplexing, and signal gating.

Key Features

• High-Speed Performance: The NB7L14MN1TWG operates at clock frequencies up to 7 GHz and data rates up to 10 Gbps, making it suitable for high-speed data applications.
• Low Power Consumption: Engineered for efficiency, the device consumes minimal power, which is crucial for thermal management and power-sensitive applications.
• Differential CML Outputs: The differential CML outputs provide reduced EMI and improved noise immunity, which are essential for maintaining signal integrity in noisy environments.
• Flexible Voltage Operation: It supports a wide range of supply voltages from 2.375V to 3.465V, providing design flexibility across various system voltage levels.
• Input/Output Compatibility: The device is compatible with LVPECL, CML, and LVDS levels, ensuring easy integration into existing designs without the need for additional level-shifting components.

Applications

The NB7L14MN1TWG is ideally suited for a variety of applications, including but not limited to:

• High-speed networking equipment
• Telecommunications infrastructure
• Data centers and storage systems
• Test and measurement equipment
• High-performance computing

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The NB7L14MN1TWG is manufactured with precision and undergoes rigorous testing to ensure reliability and performance for critical applications. Its robust design ensures long-term stability and operation even under varying environmental conditions.

Package and Environmental Information

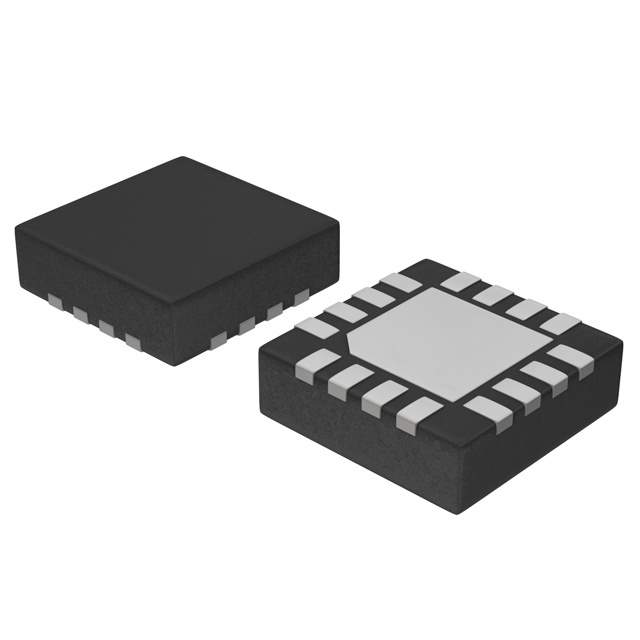

The NB7L14MN1TWG comes in a compact QFN-16 package, which is RoHS compliant and designed for surface mount technology (SMT) assembly processes. This packaging allows for efficient use of board space and is suitable for high-density mounting.
