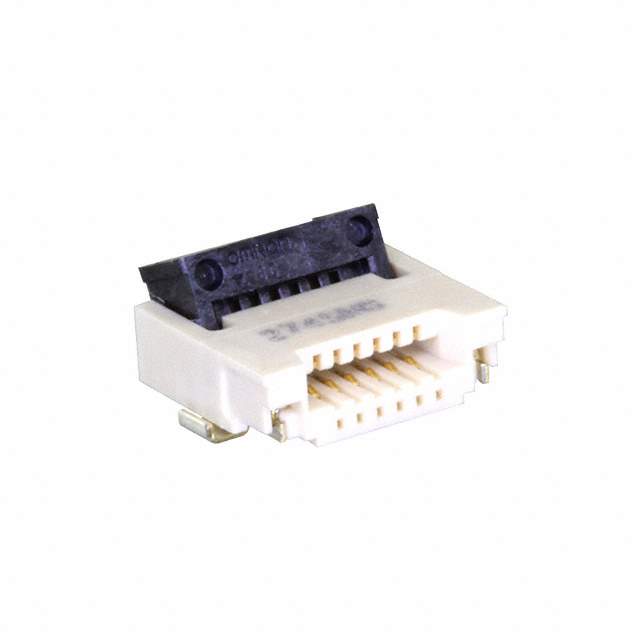

XF3M-0615-1B Real Image
Same model may have multiple batches, images only for reference.

XF3M-0615-1B

Part No XF3M-0615-1B
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 6POS 0.50MM R/A / 6 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
XF3M-0615-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF3M
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number XF3M-0615-1B-ND,XF3M-0615-1B BY OMZ,XF3M06151B,XF3M06151BBYOMZ,Z5254CT,Z5254DKR,Z5254TR
Standard Package 1,500
Win Source Part Number 1333336-XF3M-0615-1B
Ultra Librarian 3D Model Ultra Librarian XF3M-0615-1B CAD Model

Description

The XF3M-0615-1B FFC/FPC connector assembly from Omron Electronics Inc-EMC Div is a high-quality component that is designed to provide reliable performance in a wide range of applications.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Pitch: 0.020"
  • Positions: 6
  • Locking Feature: Rotary Lock and Backlock
  • Mounting Type: Surface Mount, Right Angle
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Termination Style: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Operating Temperature: -30°C to 85°C
  • RoHS Compliant: Yes
