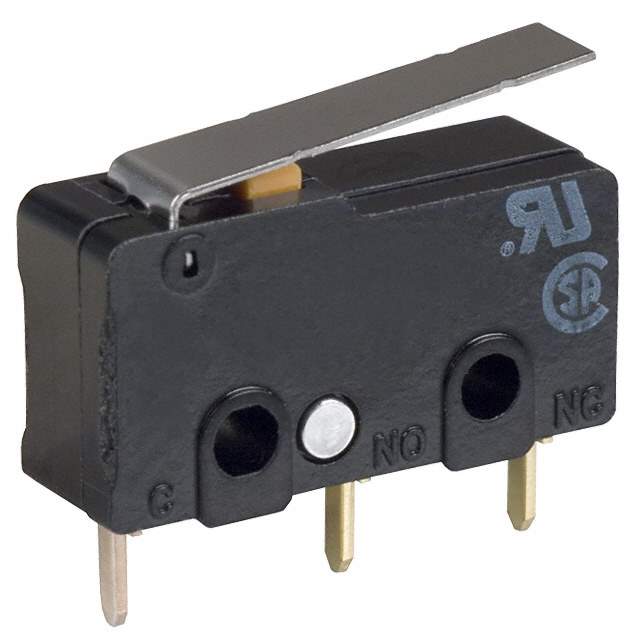

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125V
Actuator Type Lever, Straight
Mounting Style Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809996-SS-5GLD
Ultra Librarian 3D Model Ultra Librarian SS-5GLD CAD Model

Description

The SS-5GLD is a through-hole switch manufactured by Omron Electronics Inc-EMC Div.

  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Ingress Protection: IP40
  • Voltage Rating: 125V
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Electrical Life: 200,000 cycles
  • Operating Force: 50gf
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 6.118gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.345" (8.8mm)
  • Temperature Range: -25°C ~ 85°C
  • Manufacturer Pack Quantity: 500
  • Current Rating (Amps): 5A (AC)
