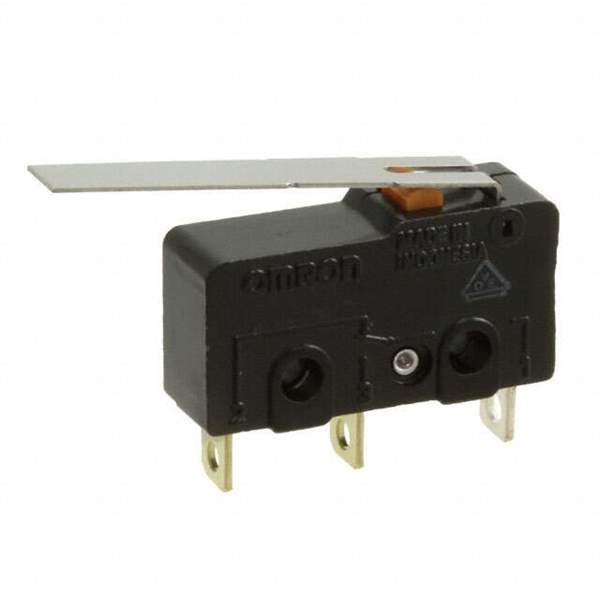

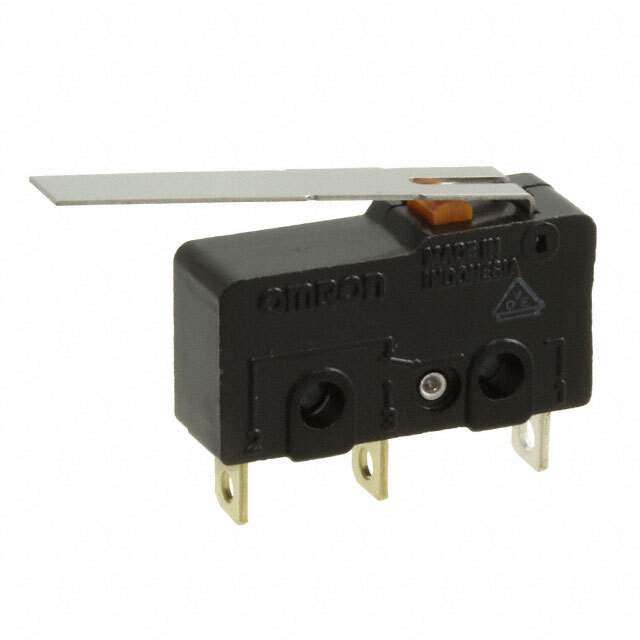

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 40gf
Release Force 3.059gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL111,-SS-5GL111,SS-5GL111,Z4572,SS5GL111BYOMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233552-SS-5GL111
Ultra Librarian 3D Model Ultra Librarian SS-5GL111 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-5GL111 is a chassis mount limit switch with a bulk package.

  • Circuit: SPDT (Single-Pole Double-Throw)
  • Mounting Type: Chassis Mount
  • Packaging: Bulk
