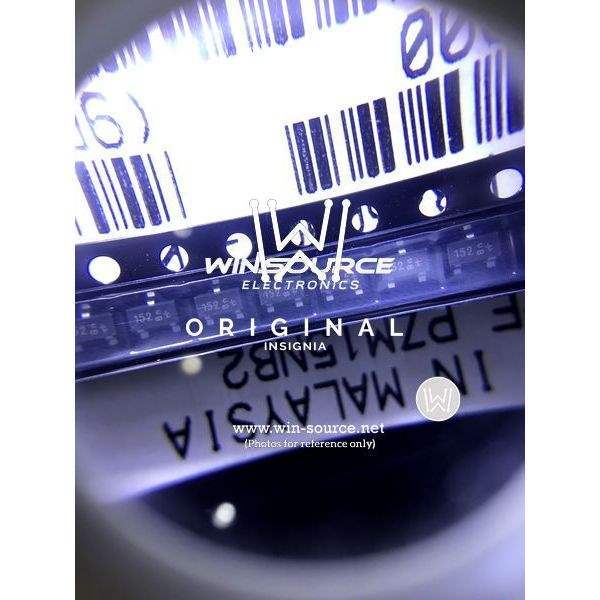

The PZM15NB2,115 is a robust, high-performance Zener diode designed and manufactured by NXP Semiconductors, a leader in the semiconductor industry. This component is specifically engineered to provide a stable and precise voltage reference, making it an ideal choice for a wide range of electronic applications that require voltage regulation and protection.

Key Features

• Nominal Zener Voltage: The PZM15NB2,115 has a nominal Zener voltage of 15V, which is suitable for various circuits that operate within this voltage range.
• Power Dissipation: With a power dissipation of 300mW, this Zener diode can withstand significant energy without compromising its functionality, ensuring reliable operation under different conditions.
• Package: Encased in a SOT346 (SC-59) package, the PZM15NB2,115 is compact and suitable for high-density circuit designs.
• High Stability: The diode offers excellent stability and a low dynamic impedance, ensuring consistent performance and a stable Zener voltage over time.
• Wide Operating Temperature Range: It operates effectively within a temperature range of -65°C to +150°C, making it versatile for use in various environments.

Applications

The PZM15NB2,115 is commonly used in applications that require voltage regulation, such as:

• Power supply circuits
• Overvoltage protection circuits
• Voltage reference in analog circuits
• Switching power supplies

Quality and Reliability

NXP Semiconductors is known for their commitment to quality and the PZM15NB2,115 is no exception. It is designed to meet stringent industry standards, ensuring high reliability and performance. Whether used in commercial, industrial, or automotive applications, this Zener diode by NXP is built to deliver consistent results and protect your electronic circuits.

Ordering Information

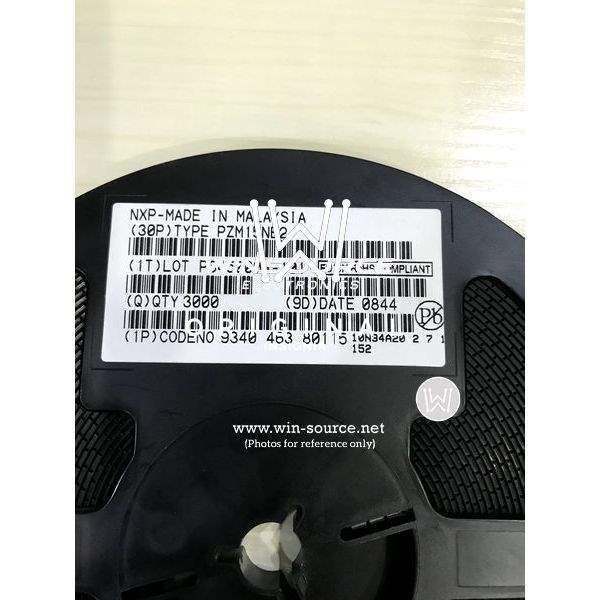

The part number PZM15NB2,115 signifies the 15V nominal Zener voltage version in a SOT346 package, supplied in reel packaging suitable for automated assembly processes. For detailed ordering and shipping information, it is recommended to consult the official NXP Semiconductors datasheet or contact their sales department.
