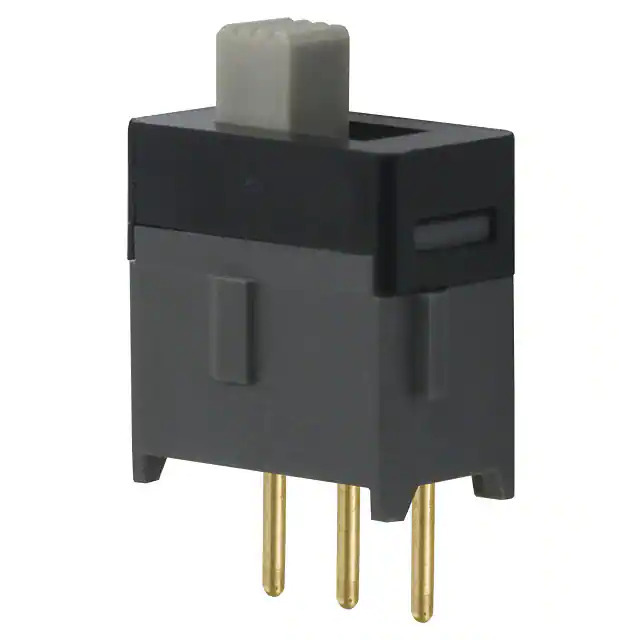

AS12AP NKK Switches
Same model may have multiple batches, images only for reference.

AS12AP

Part No AS12AP
Manufacturer NKK Switches
Catalog Slide Switches
Description SWITCH SLIDE SPDT 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr NKK Switches
Series AS
Package Tray
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 2.50mm
Contact Material Phosphor Bronze
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon, Glass Filled
Switch Travel 2.50mm
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Operating Force 260gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376324-AS12AP
Ultra Librarian 3D Model Ultra Librarian AS12AP CAD Model

Description

The AS12AP is a through hole slide switch from NKK Switches' AS series.

  • Current Rating (AC/DC): 0.4VA
  • Voltage Rating (AC/DC): 28V
  • Circuit: SPDT
  • Switch Function: On-On
  • Temperature Range: -30°C to 85°C
  • Terminals: Epoxy Sealed
  • Contact Finish: Gold
  • Mounting Type: Through Hole
  • Mechanical Life: 50,000 cycles
