Same model may have multiple batches, images only for reference.

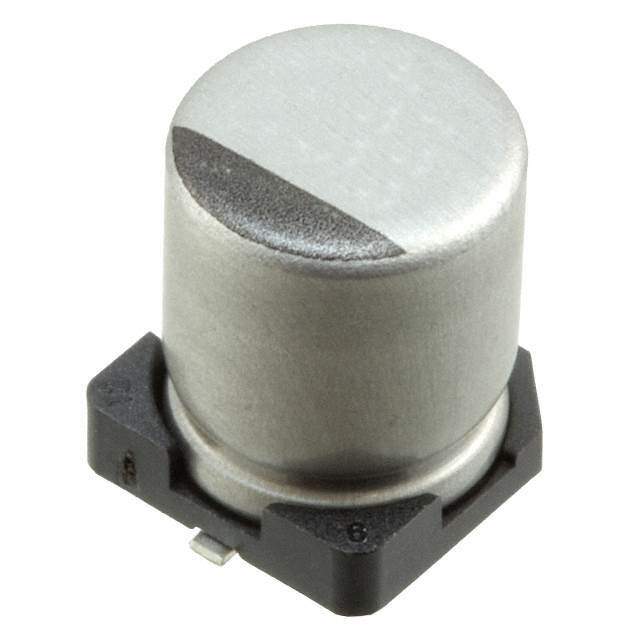

UCD1K100MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCD1K100MCL1GS

Part No UCD1K100MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 80V SMD / 10 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 80 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 30 mA @ 120 Hz
Ripple Current @ High Frequency 60 mA @ 100 kHz
Impedance 2.4 Ohms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-6406-1,493-6406-6,493-6406-2,UCD1K100MCL1GS-ND
Standard Package 900
Win Source Part Number 1329931-UCD1K100MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1K100MCL1GS CAD Model

Description

This aluminum electrolytic capacitor by Nichicon is a surface-mount component that comes in reel packaging of 900 pieces.

  • Mounting Type: Surface Mount
  • Packaging: Reel (900 pieces)
  • Capacitance: 10 µF
  • Tolerance: ±20%
  • Voltage Rating: 80V
  • Diameter: 0.248" (6.30mm)
  • Seated Height: 0.315" (8.00mm)
  • AEC-Q200 Rated: Yes
  • Ripple Current (Low Frequency): 30mA @ 120 Hz
  • Ripple Current (High Frequency): 60mA @ 100 kHz
  • Lifetime: 2000 hours @ 105°C
  • Polarized: Yes
  • Surface-Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Application: Automotive
  • Base Product Number: UCD1K100MCL1GS
