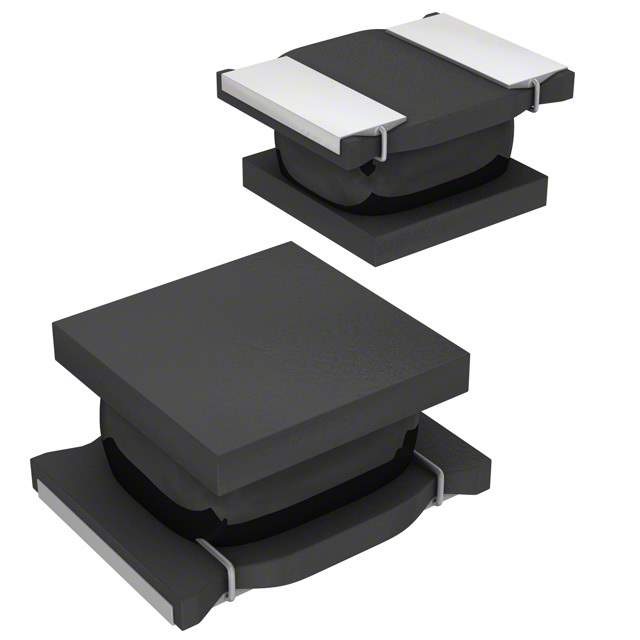

LQH3NPZ6R8MGRL

Name: LQH3NPZ6R8MGRL
Brand: Murata Electronics North America
SKU: 1327931
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQH3NPZ6R8MGRL
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 680MA 276MOHM SM / 6.8 µH Shielded Drum Core, Wirewound Inductor 680 mA 276mOhm Max 1212 (3030 Metric)
Datasheet	LQH3NPZ6R8MGRL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Murata Electronics
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.8 µH
Tolerance	±20%
Current Rating (Amps)	680 mA
Current - Saturation (Isat)	720mA
Shielding	Shielded
DC Resistance (DCR)	276mOhm Max
Frequency - Self Resonant	25MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	1212 (3030 Metric)
Supplier Device Package	1212 (3030 Metric)
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.039" (1.00mm)
Base Product Number	LQH3NPZ
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	490-15966-1,490-15966-6,490-15966-2
Standard Package	3,000
Win Source Part Number	1327931-LQH3NPZ6R8MGRL
Ultra Librarian 3D Model	Ultra Librarian LQH3NPZ6R8MGRL CAD Model

Alternative Products

Description

Murata Electronics' LQH3NPZ6R8MGRL is a reliable and efficient inductor that is ideal for use in a variety of electronic applications.

Type: Drum Core, Wirewound
Shielding: Shielded
Size/Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Inductance: 6.8 μH
Current Rating: 680 mA
Height: 0.039" (1.00mm)
Mounting Type: Surface Mount
Tolerance: ±20%
AEC-Q200 Rated: Yes
Frequency - Self-Resonant: 25MHz
DC Resistance (DCR): 276mOhm Max
Packaging: Reel - TR
Standard Package: 3,000
Temperature Range: -40°C to 105°C
