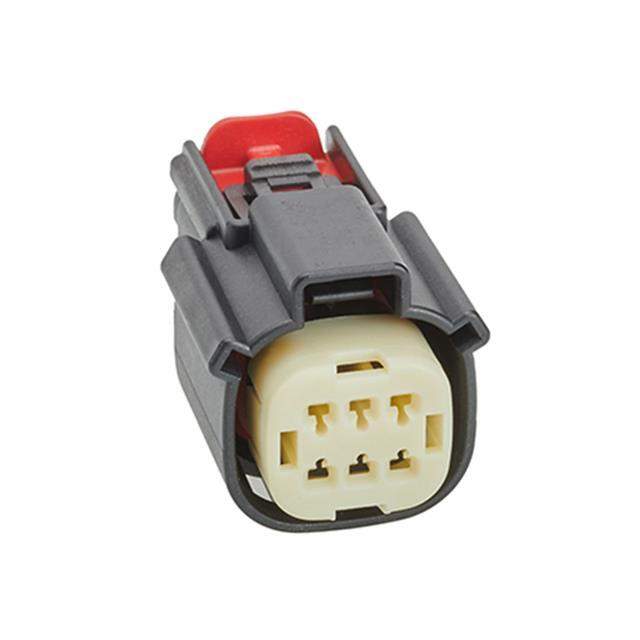

33472-0601 Real Image
Same model may have multiple batches, images only for reference.

33472-0601

Part No 33472-0601
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, Cable Mount, Plug, 6 Contacts, Skt, 0.138 Pitch, Locking Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Country of Origin US
Current Rating 22 A
Depth 36.95 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 24.8 mm
Housing Material Polystyrene
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 6
Number of Pins 6
Number of Positions 6
Number of Rows 2
Orientation Straight
Pitch 3.5 mm
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Voltage Rating (DC) 250 V
Width 22.15 mm
Win Source Part Number 1024077-33472-0601
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 33472-0601 CAD Model

Description

This is a 6-position, 3.5 mm pitch, black-colored receptacle connector manufactured by Molex, LLC.

  • Win Source Part Number: 1024077-33472-0601
  • Material: Polystyrene
  • Current Rating: 22 A
  • Voltage Rating (DC): 250 V
  • Low Halogen: Yes
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 125 °C
