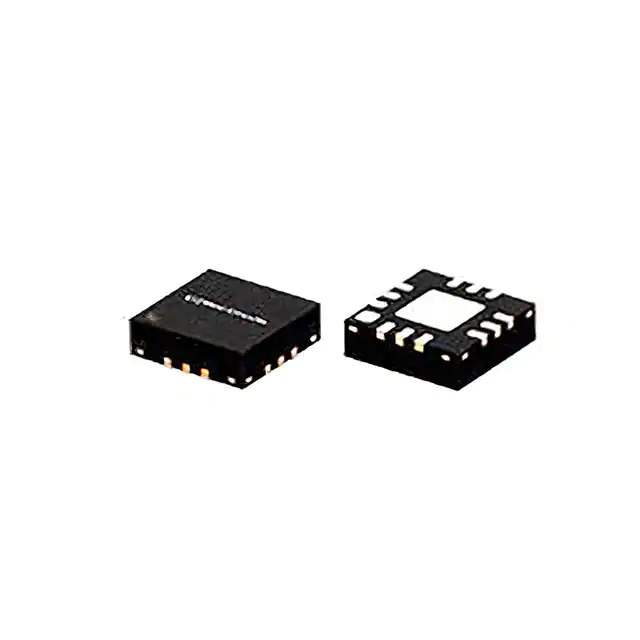

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 610MHz (Cutoff)
Filter Type Low Pass
Insertion Loss 1.8dB
Mounting Type Surface Mount
Package / Case 12-VQFN Exposed Pad
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height (Max) 0.035" (0.89mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 842845-XLF-421+
Ultra Librarian 3D Model Ultra Librarian XLF-421+ CAD Model

Description

The 842845-XLF-421+ is a low pass RF filter designed for use in electronic devices from Mini-Circuits.

  • Cutoff Frequency: 610MHz
  • Insertion Loss: 1.8dB
  • Mounting: Surface Mountable
  • Size: 0.118" x 0.118" (3.00mm x 3.00mm)
  • Package: 12-VQFN exposed pad
  • Standard Package: 500 pcs
  • Status: Active
