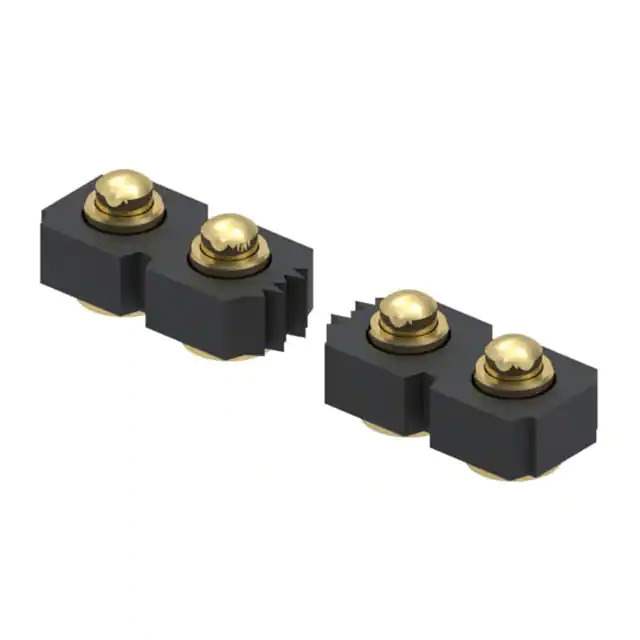

Part No 815-22-008-30-001101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING PISTON 8POS SMD / 8 Position Spring Piston Connector Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Spring Loaded
Mfr Mill-Max Manufacturing Corp.
Series 815
Package Tube
Connector Type Piston
Number of Contacts 8
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 815-22
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349922-815-22-008-30-001101
Ultra Librarian 3D Model Ultra Librarian 815-22-008-30-001101 CAD Model

Description

The 1349922-815-22-008-30-001101 is a spring-loaded rectangular connector from Mill-Max Manufacturing Corp.

  • Pitch: 0.100" (2.54mm)
  • Connector Type: Piston
  • Rows: 1
  • Contacts: 8
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Mounting Type: Surface Mount
  • Contact Material: Copper Alloy
  • ECCN: EAR99
  • REACH: Unaffected
