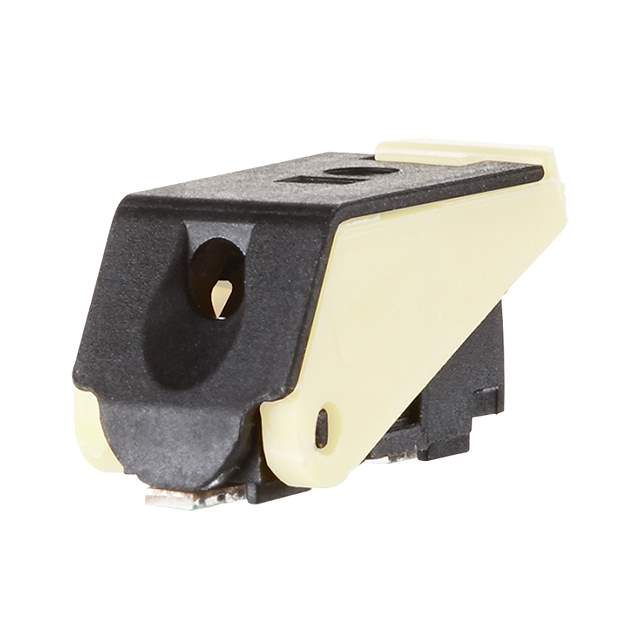

SM99S01VBNN01G7 Real Image
Same model may have multiple batches, images only for reference.

SM99S01VBNN01G7

Part No SM99S01VBNN01G7
Manufacturer METZ CONNECT USA Inc.
Catalog Terminal Blocks
Description TERM BLOCK 1POS SIDE ENTRY SMD / 1 Position Wire to Board Terminal Block Horizontal with Board Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr METZ CONNECT USA Inc.
Package Tape & Reel
Number of Levels 1
Positions Per Level 1
Mating Orientation Horizontal with Board
Current 9 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Surface Mount
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Push Button Actuated
Color White
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA6T) , Nylon 6T
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel
Base Product Number SM99S01VB
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348608-SM99S01VBNN01G7
Ultra Librarian 3D Model Ultra Librarian SM99S01VBNN01G7 CAD Model

Description

The SM99S01VBNN01G7 is a wire-to-board terminal block connector manufactured by METZ CONNECT USA Inc.

  • Feature: push-button actuated
  • Wire Gauges: 16-24 AWG
  • Voltage Rating: 300V
  • Packaging: tape and reel
  • Standard Package: 1000
  • REACH: unaffected
