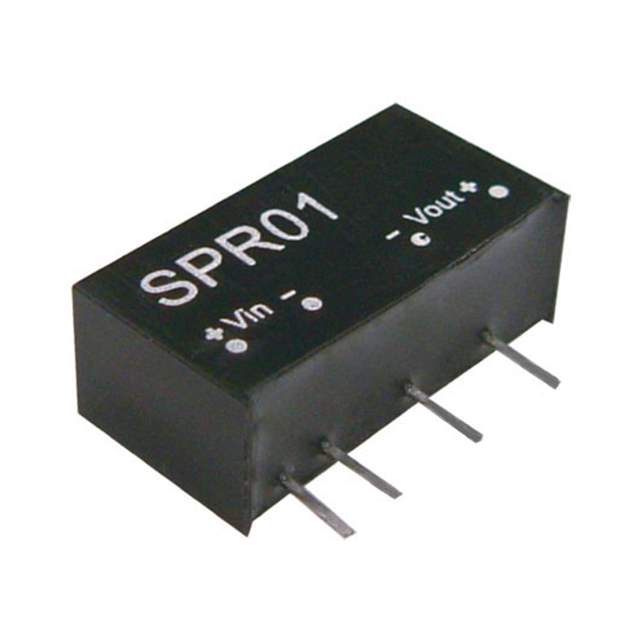

Same model may have multiple batches, images only for reference.

SPR01L-05

Name: SPR01L-05
Brand: Mean Well Enterprises Co., Ltd.
SKU: 675464
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SPR01L-05
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	1W DC-DC Regulated Single Output Converter \| DC DC CONVERTER 5V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	MEAN WELL USA Inc.
Packaging	Tube
Type	Isolated Module
Voltage - Input (Minimum)	4.5V
Voltage - Input (Maximum)	5.5V
Voltage - Output 1	5V
Current - Output (Maximum)	200mA
Power (W)	1W
Voltage - Isolation	1000V
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-25°C ~ 71°C (With Derating)
Efficiency	57%
Mounting Style	Through Hole
Manufacturer Package	6-SIP Module, 4 Leads
Parts Dimension	0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.1mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1258152-SPR01L-05
Manufacturer Homepage	www.meanwell.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian SPR01L-05 CAD Model

Alternative Products

Description

The SPR01L-05 is an isolated module manufactured by MEAN WELL USA Inc.

Packaging: tube
Application: board mounted power supplies
Mounting Style: through-hole
Protection: overcurrent protection (OCP), short-circuit protection (SCP)
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 5V
Efficiency: 57%
Maximum Output Current: 200mA
Operating Temperature: -25°C to 71°C with derating
Package: 6-SIP module, four leads
Power: 1W
Compliance: RoHS compliant
Supply and Demand Status: limited
