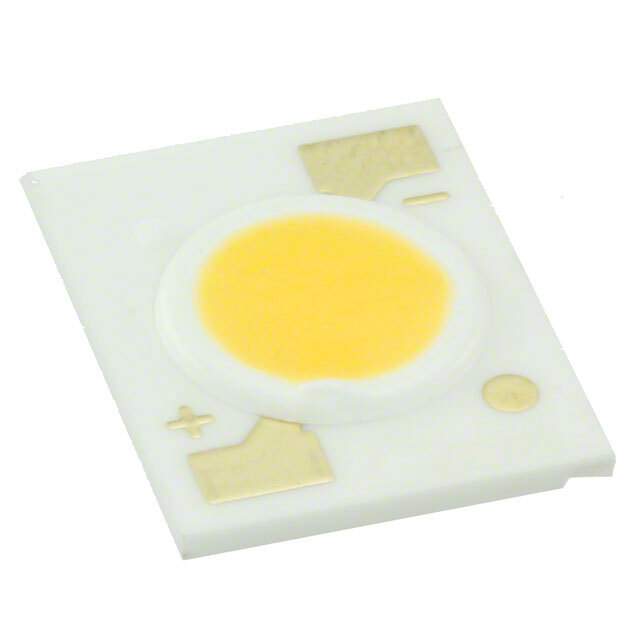

L2C3-2780109E06000 Real Image
Same model may have multiple batches, images only for reference.

L2C3-2780109E06000

Part No L2C3-2780109E06000
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB COMPACT WARM WHT RECT / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Rectangle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumileds
Series LUXEON CoB Compact
Package Tube
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Rectangle
Luminous Flux @ Current/Temperature 975lm (Typ)
Current - Test 250mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 35.5V
Lumens/Watt @ Current - Test 110 lm/W
Current - Max 400mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 12.00mm L x 15.00mm W
Height 1.50mm
Light Emitting Surface (LES) 6.50mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1370-5
Standard Package 100
Win Source Part Number 959312-L2C3-2780109E06000
Ultra Librarian 3D Model Ultra Librarian L2C3-2780109E06000 CAD Model

Description

The LUXEON CoB Compact is a chip on board (COB) type LED lighting component that comes in a rectangular configuration and is manufactured by Lumileds.

  • Color: White and Warm
  • Viewing Angle: 115 degrees
  • Current Maximum: 400mA
  • Voltage Forward (Vf): 35.5V
  • Lens Type: Flat
  • Height: 1.50mm
  • CCT (K): 2700K 3-Step MacAdam Ellipse
  • CRI: 80
  • LES Diameter: 6.50mm
  • Dimension: 12.00mm L x 15.00mm W
  • Luminous Flux @ Current/Temperature: 975lm (Typ)
  • Lifecycle Status: Obsolete
