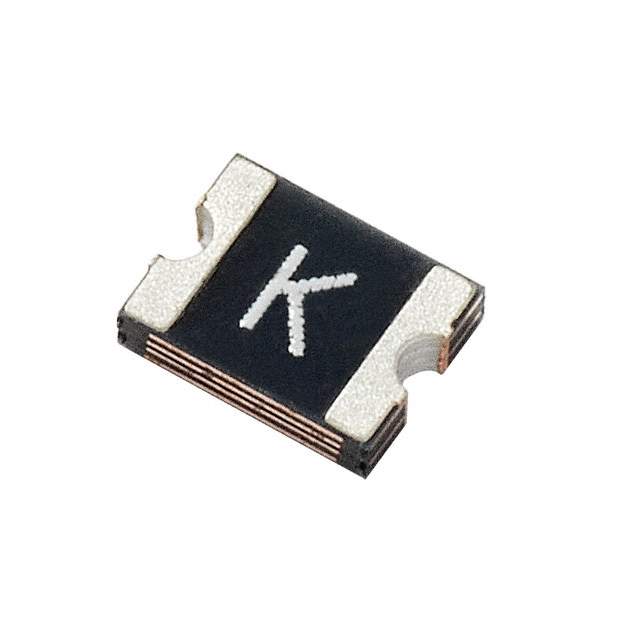

1210L075YR

Name: 1210L075YR
Brand: Littelfuse Inc.
SKU: 415537
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1210L075YR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESETTABLE 6V .750A SMD 1210
Datasheet	1210L075YR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Polymeric
Voltage - Max	6V
Current - Max	100A
Current - Hold (Ih) (Max)	750mA
Current - Trip (It)	1.5A
Time to Trip	100ms
Resistance - Initial (Ri) (Min)	130 mOhm
Resistance - Post Trip (R1) (Max)	400 mOhm
Temperature Range - Operating	-40°C to 85°C
Mounting	SMD (SMT)
Dimension	0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max)	0.033" (0.85mm)
Approvals	cURus, TUV
Win Source Part Number	1001256-1210L075YR
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian 1210L075YR CAD Model

Alternative Products

Description

The Littelfuse Inc. 1001256-1210L075YR is a polymeric circuit protection component designed for general-purpose applications.

Mounting: SMD (SMT)
Category: Circuit protection
Packaging: Tape & reel
Thickness (Max): 0.033" (0.85mm)
Voltage Rating: 6V
Maximum Current Rating: 100A
Current Hold (Ih) (Max): 750mA
Current Trip (It): 1.5A
Time to Trip: 100ms
Resistance - Initial (Ri) (Min): 130 mOhm
Resistance - Post Trip (R1) (Max): 400 mOhm
Supply and Demand Status: Sufficient
