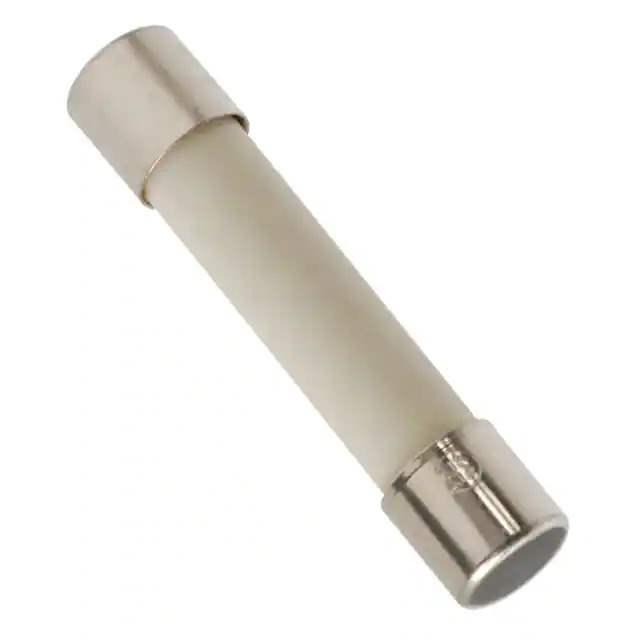

The 853167-0326003.MXP is a cartridge ceramic fuse from the 326 series manufactured by Littelfuse Inc.

• Application: Designed for circuit protection in electronic devices
• Voltage Rating: 250V (AC) and 125V (DC)
• Response Time: Slow blow
• Breaking Capacity @ Rated Voltage: 100A (AC) and 10kA (DC)
• Melting I2t Value: 200
• Size Dimensions: 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
• DC Cold Resistance: 0.0605 Ohms
• Mounting: Requires a holder
• Package/Case Size: 3AB, 3AG, 1/4" x 1-1/4"
• Operating Temperature: -55°C to 125°C
• Market Status: Currently active
• Approvals: CE, CSA, K-MARK, PSE, and UL
