Same model may have multiple batches, images only for reference.

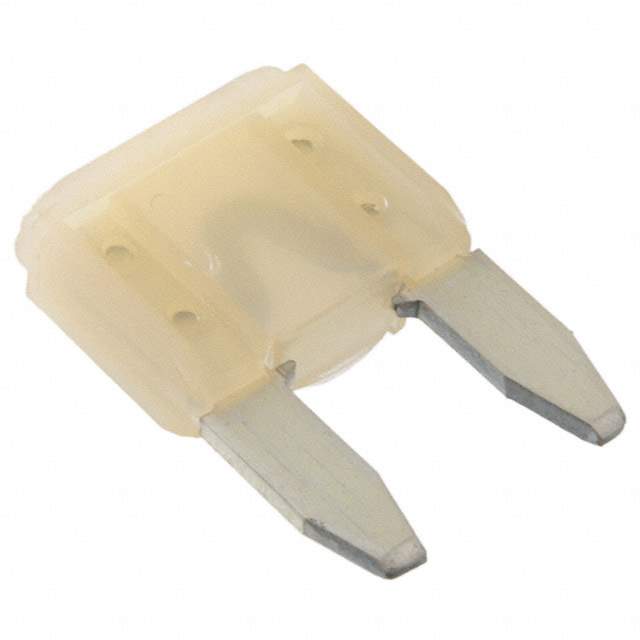

0297025.WXNV Real Image
Same model may have multiple batches, images only for reference.

0297025.WXNV

Part No 0297025.WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 25A 32VDC BLADE MINI / MINI® BLADE FUSE RATED 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 25A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, Miniature
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 625
Temperature Range - Operating -40°C ~ 125°C
Color Clear
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.00236 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803068-0297025.WXNV
Ultra Librarian 3D Model Ultra Librarian 0297025.WXNV CAD Model

Description

The Littelfuse Inc. 803068-0297025.WXNV is a medium-popularity electronic component with a balance supply and demand status. It is a clear-colored automotive fuse with a blade, miniature manufacturer package.

  • Voltage Rating - DC: 32V
  • Response Time: Fast Blow
  • Melting I2t: 625
  • DC Cold Resistance: 0.00236 Ohms
  • Operating Temperature: -40°C ~ 125°C
  • Dimension: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • Current Rating (Amps): 25A
  • Breaking Capacity @ Rated Voltage: 1kA
