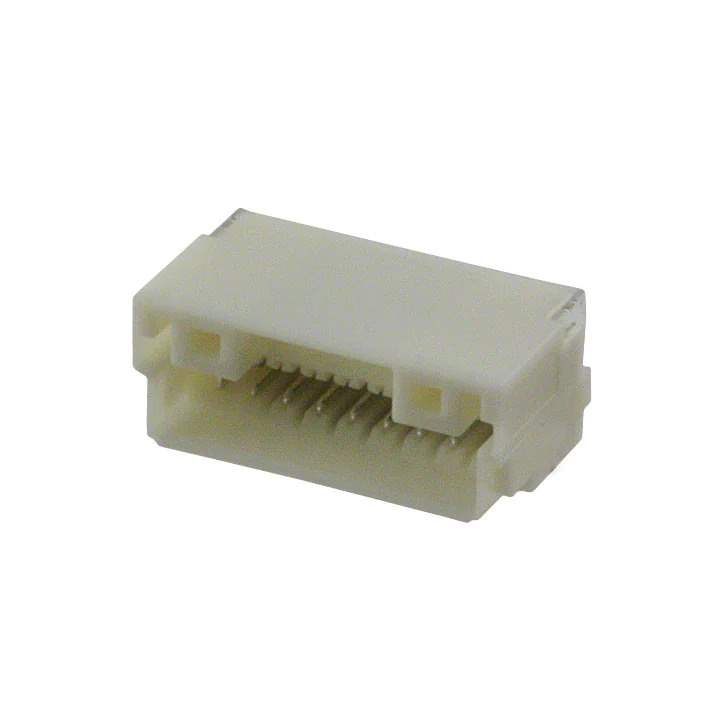

BM09B-NSHSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM09B-NSHSS-TBT(LF)(SN)

Part No BM09B-NSHSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 9POS 1MM / Connector Header Surface Mount 9 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series NSH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.236" (6.00mm)
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 7.8mm
Base Product Number BM09B-NS
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 864366-BM09B-NSHSS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM09B-NSHSS-TBT(LF)(SN) CAD Model

Description

The 864366-BM09B-NSHSS-TBT(LF)(SN) is a male pin header connector from the NSH series manufactured by JST Sales America Inc.

  • Positions: 9
  • Connection Type: Board to Cable/Wire
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Contact Material: Copper Alloy with Tin Finish
  • Shrouded: 4 Walls
  • Pitch: 0.039" (1.00mm)
  • Package: Tape & Reel
  • Pieces per Package: 1,000
  • Operating Temperature: -25°C to 85°C
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
