Same model may have multiple batches, images only for reference.

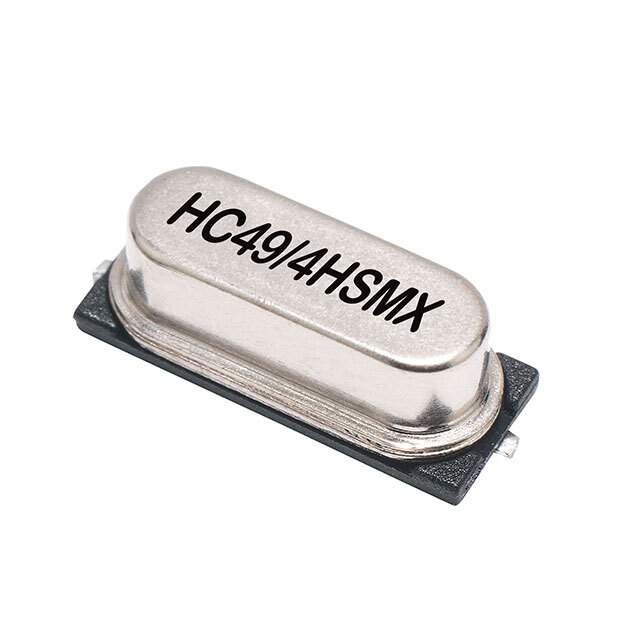

LFXTAL020131REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL020131REEL

Part No LFXTAL020131REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 18PF SMD / 20 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series HC49/4HSMX
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.150" W (11.40mm x 3.80mm)
Height - Seated (Max) 0.169" (4.30mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 1923-1500-6,1923-1500-1-ND,1923-1499-6,LFXTAL020131CUTT,1923-1499-2,1923-1500-6-ND,1923-1500-1INACTIVE,1923-1499-1,1923-1500-6INACTIVE,1923-1500-1
Standard Package 1,000
Win Source Part Number 1167225-LFXTAL020131REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL020131REEL CAD Model

Description

The LFXTAL020131REEL is a MHz crystal from IQD Frequency Products.

  • Package: Tape and Reel
  • Category: Crystal, Oscillator, Resonator
  • Frequency: 20 MHz
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • MSL Level: Not Applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8541.60.0050
