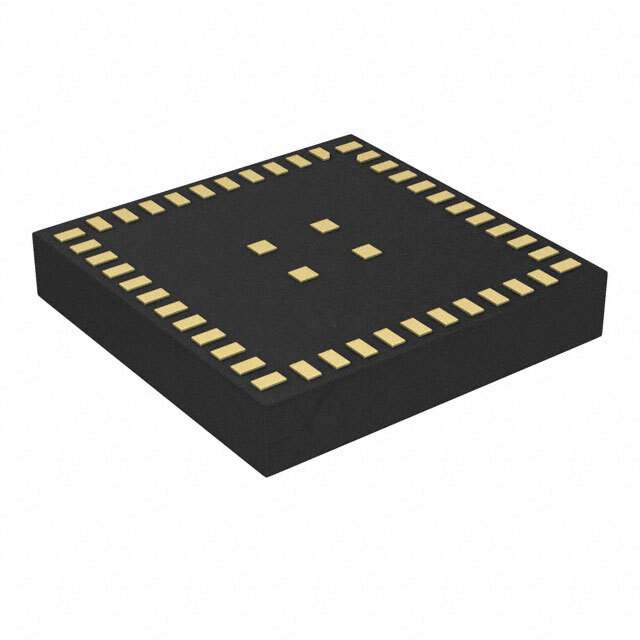

CYW20736ST Real Image
Same model may have multiple batches, images only for reference.

CYW20736ST

Part No CYW20736ST
Manufacturer Infineon Technologies
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH MODULE / IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 48-TFLGA
Datasheet
CYW20736ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Infineon Technologies
Package Tape & Reel
Product Status Active
Programmable Not Verified
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Frequency 2.4GHz
Memory Size 60kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 14
Voltage - Supply 1.4V ~ 3.6V
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Surface Mount
Package / Case 48-TFLGA
Supplier Device Package 48-LGA (6.5x6.5)
Base Product Number CYW20736
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Win Source Part Number 845342-CYW20736ST
Ultra Librarian 3D Model Ultra Librarian CYW20736ST CAD Model

Description

The CYW20736ST is a Bluetooth v4.1 RF transceiver IC from Infineon Technologies.

  • Type: TxRx + MCU
  • Frequency: 2.4GHz
  • Memory Size: 60kB RAM
  • Serial Interfaces: I2C, SPI, and UART
  • GPIO Pins: 14
  • Voltage Supply Range: 1.4V to 3.6V
  • Mounting Type: Surface Mountable
  • Package: 48-TFLGA
  • Temperature Range: -30°C to 85°C
