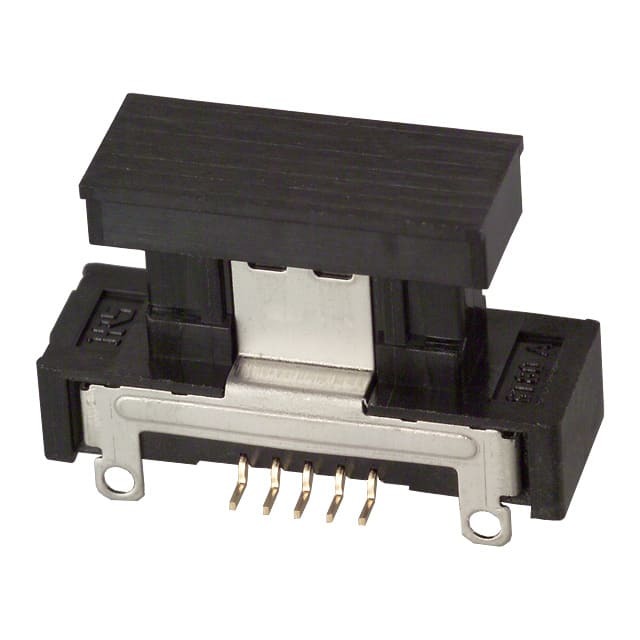

ST80X-10S
Same model may have multiple batches, images only for reference.

ST80X-10S

Part No ST80X-10S
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1MM / Connector Header Surface Mount 10 position 0.039" (1.00mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series ST
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Cradle
Contact Type Non-Gendered
Pitch - Mating 0.039" (1.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.378" (9.60mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Mounting Flange, Shielded
Temperature Range - Operating -30°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 100V
Standard Package 400 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 897864-ST80X-10S
Ultra Librarian 3D Model Ultra Librarian ST80X-10S CAD Model

Description

The ST80X-10S is a rectangular connector plug with male pins from Hirose Electric Co Ltd. It belongs to the ST series and has a total of 10 positions.

  • Series: ST
  • Positions: 10
  • Features: Board Guide, Mounting Flange, Shielded
  • Type: Plug/Cradle
  • Contacts: Non-Gendered
  • Positions Loaded: All
  • Rows: Single
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Package: Tape & Reel
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • Insulation Material: Polyamide (PA) / Nylon
  • Mounting: Surface Mount
  • Current Rating: 0.5A
  • Classification: EAR99
  • Application: Board-to-Cable/Wire
