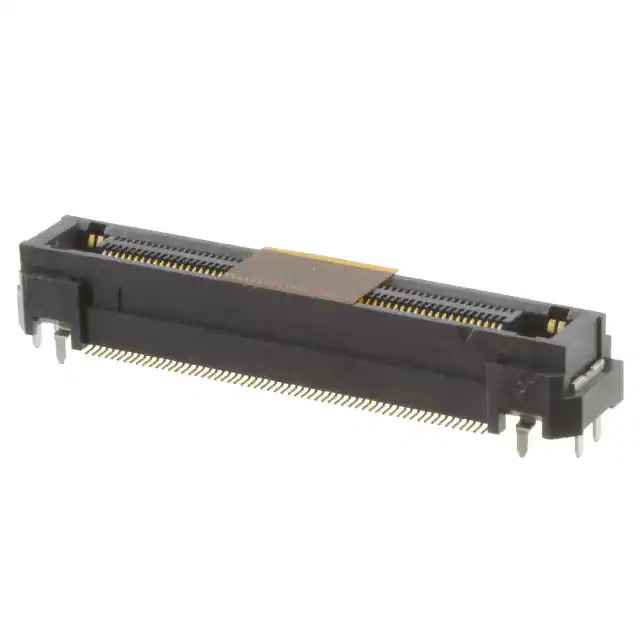

FX23-120S-0.5SV

Name: FX23-120S-0.5SV
Brand: Hirose Electric Co Ltd
SKU: 1355025
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX23-120S-0.5SV
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / 124 (120 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX23
Package	Tray
Product Status	Active
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	124 (120 + 4 Power)
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	15mm, 20mm
Height Above Board	0.268" (6.80mm)
Base Product Number	FX23
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1355025-FX23-120S-0.5SV
Ultra Librarian 3D Model	Ultra Librarian FX23-120S-0.5SV CAD Model

Alternative Products

Description

The FunctionMax™ FX23 series from Hirose Electric Co Ltd is a rectangular connector array designed for board-to-board connections.

Mounting Type: Surface mount
Contact Finish: Gold
Positions: 124 (120 + 4 power)
Rows: 2
Mated Stacking Heights: 15mm and 20mm
Pitch: 0.020" (0.50mm)
Height Above Board: 0.268" (6.80mm)
Status: Active product
Package: Tray
