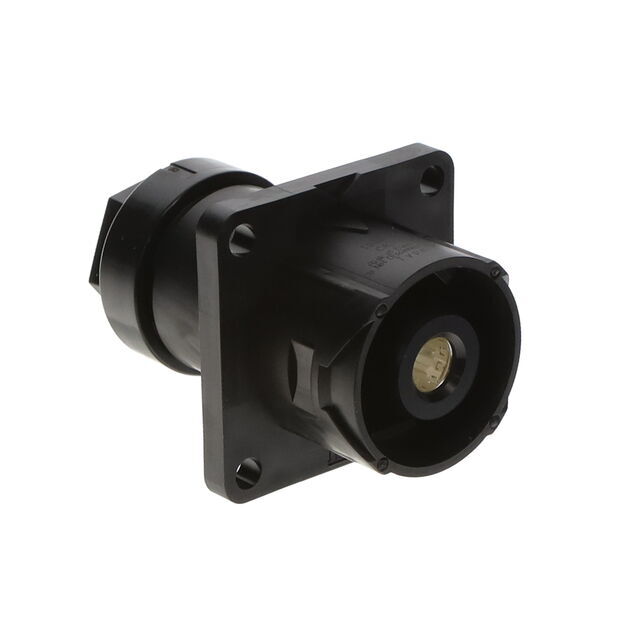

EM30M-BJ-1SCA-K(81) Hirose Electric Co Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

EM30M-BJ-1SCA-K(81)

Part No EM30M-BJ-1SCA-K(81)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description JACK, FEMALE, 200A, PUSH-ON BAYO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsCircular ConnectorsCircular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series EM30M
Packaging Bag
Part Status Active
Connector Type Jack, Female Sockets
Number of Positions 1
Shell Size - Insert 30
Mounting Type Panel Mount
Mounting Feature Flange
Termination Crimp, Screw
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Contact Finish - Mating Silver
Color Black
Material Flammability Rating UL94 V-0
Features Board Guide, Interlocking Switch
Shielding Unshielded
Current Rating (Amps) 150A
Voltage Rating 600VAC/DC, 1000VAC/DC
Operating Temperature -25°C ~ 105°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Insert Material Polybutylene Terephthalate (PBT)
Ultra Librarian 3D Model Ultra Librarian EM30M-BJ-1SCA-K(81) CAD Model
