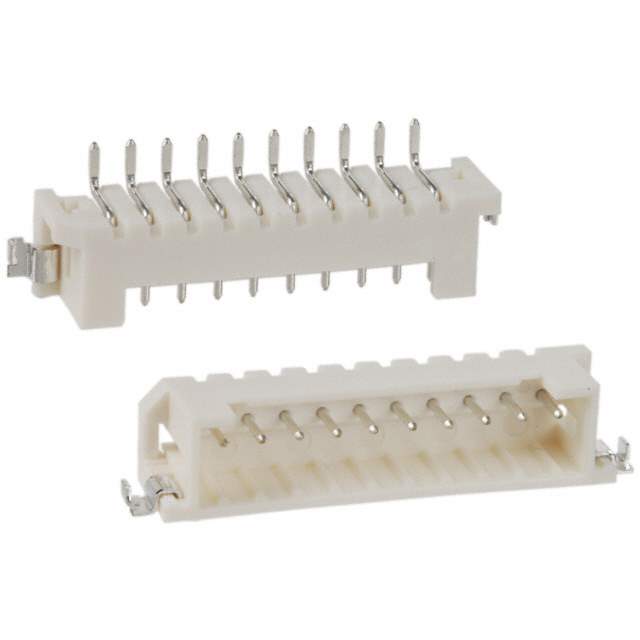

DF3D-10P-2H(20) Real Image
Same model may have multiple batches, images only for reference.

DF3D-10P-2H(20)

Part No DF3D-10P-2H(20)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 10POS 2MM
Datasheet
DF3D-10P-2H(20) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount, Right Angle 10 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF3
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 105°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *DF3D-10P-2H(20), H3999
Quantity per package 17
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868549-DF3D-10P-2H(20)
Ultra Librarian 3D Model Ultra Librarian DF3D-10P-2H(20) CAD Model

Description

The Hirose Electric Co Ltd DF3D-10P-2H(20) connector header is a surface mount, right angle 10 position device with a 0.079" (2.00mm) pitch. It is part of the DF3 series, but it is now obsolete.

  • Mounting: Surface mount, right angle
  • Positions: 10
  • Pitch: 0.079" (2.00mm)
  • Series: DF3
  • Status: Obsolete
  • Package: Tube
  • Pieces per Package: 17
  • Popularity: Medium
