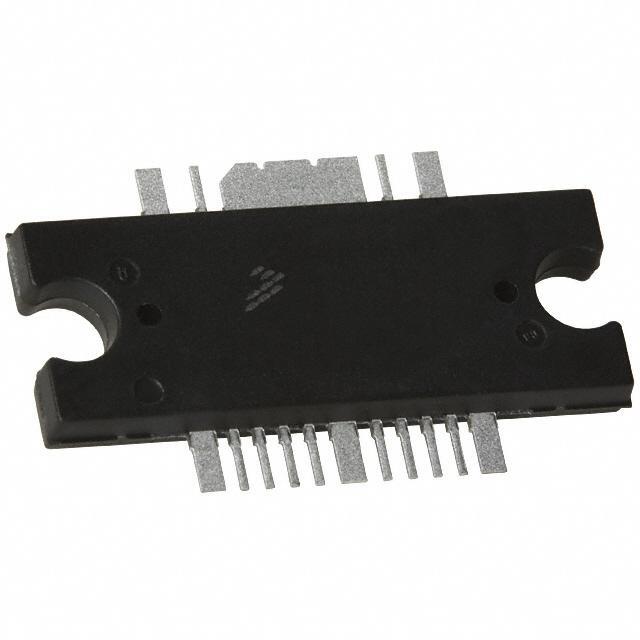

MW6IC2240NBR1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MW6IC2240NBR1

Part No MW6IC2240NBR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 28V 4.5W TO-272-16
Datasheet
MW6IC2240NBR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 2.11GHz to 2.17GHz
Gain 28dB
RF Type Cellular, W-CDMA
Supply Voltage - Operating 28V
Operating Supply Current 210mA
Case / Package TO-272 WB-16
Win Source Part Number 085074-MW6IC2240NBR1
Family Name MW6IC2240NB
Introduction Date September 28, 2005
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MW6IC2240NBR1 CAD Model

Description

The NXP MW6IC2240NBR1 is a high gain RF amplifier that operates at a frequency range of 2.11GHz to 2.17GHz.

  • Gain: 28dB
  • Suitable for: Cellular and W-CDMA RF applications
  • Package: TO-272 WB-16
  • Supply Voltage: 28V
  • Operating Supply Current: 210mA
  • Status: Obsolete(EOL)
  • Alternatives: TGA2576-2-FL, TGA2238, and HMC7327F10A
